Service Engine

Avoid Fumes

c CAUTION: Avoid injury! Engine exhaust fumes contain carbon monoxide and can cause serious illness or death. Move the machine to an outside area before running the engine. Do not run an engine in an enclosed area without adequate ventilation. · Connect a pipe extension to the engine exhaust pipe to direct the exhaust fumes out of the area. · Allow fresh outside air into the work area to clear the exhaust fumes out.

Engine Warranty Maintenance Statement

Maintenance, repair, or replacement of the emission control devices and systems on this engine, which are being done at the customers expense, may be performed by any non-road engine repair establishment or individual. Warranty repairs must be performed by an authorized John Deere dealer.

Engine Oil

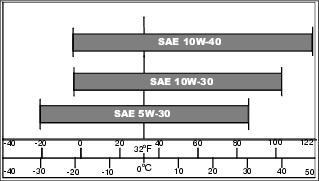

Use oil viscosity based on the expected air temperature range during the period between oil changes.

The following John Deere oils are preferred:

· TURF-GARD

· PLUS- 4

Other oils may be used if above John Deere oils are not available, provided they meet the following specification:

· API Service Classification SG or higher

Checking Engine Oil Level

NOTE: Check oil twice a day if you run engine over 4 hours in a day.

1. Park machine safely. (See Parking Safely in the Safety Section.)

2. Lift hood.

3. Clean area around dipstick to prevent debris from falling into crankcase.

MX31363

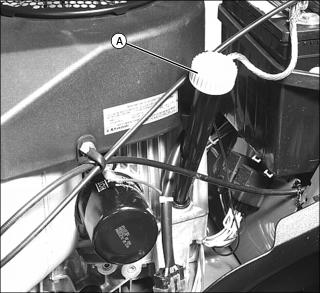

4. Remove dipstick (A). Wipe with clean cloth.

5. Install dipstick in tube, but do not tighten. Let dipstick threads rest on top of tube, turn cap counterclockwise until it starts to engage threads.

6. Remove dipstick.

MIF

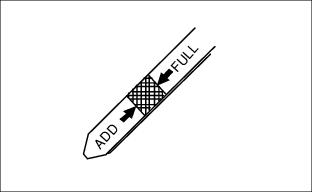

7. Check oil level on dipstick. Oil must be between ADD and FULL marks.

8. If oil level is low, add oil to bring oil level no higher than FULL mark on dipstick.

9. Install and tighten dipstick. Lower hood.

Changing Engine Oil and Filter

1. Run engine to warm oil.

2. Park machine safely on level surface. (See Parking Safely in the Safety section.)

3. Lift hood.

4. Put drain pan under drain valve.

MX31363

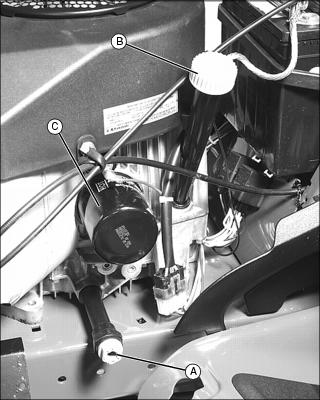

5. Remove nylon drain cap nut (A) and drain oil into drain pan. Allow oil to drain completely.

6. Remove dipstick (B).

7. Wipe dirt from around oil filter (C).

8. Place a drain pan or funnel under oil filter tray.

9. Remove old filter and wipe off filter tray.

10. Put a light coat of fresh, clean oil on the filter gasket.

11. Install replacement oil filter by turning oil filter to the right (clockwise) until the rubber gasket contacts filter base. Tighten filter an additional one-half turn.

12. Install nylon drain cap nut (A).

13. Add oil no higher than FULL mark on dipstick. Begin with approximately 1.6 L (1.7 qt) (54 oz). Do not overfill.

14. Install dipstick.

15. Start and run engine at idle to check for leaks. Stop engine. Fix any leaks before operating.

16. Check oil level. Add oil if necessary.

Cleaning Air Intake Screen and Engine Fins

c CAUTION: Avoid injury! Compressed air can cause debris to fly a long distance. · Clear work area of bystanders. · Wear eye protection when using compressed air for cleaning purposes. · Reduce compressed air pressure to 210 kPa (30 psi).

1. Park machine safely. (See Parking Safely in the SAFETY Section.)

2. Lift hood.

3. Clean air intake screen on top of engine and external surfaces with rag, brush, vacuum or compressed air.

4. Lower hood.

Checking and Cleaning Air Cleaner Elements

1. Park machine safely (See Parking Safely in the Safety Section).

2. Lift hood.

MX11123

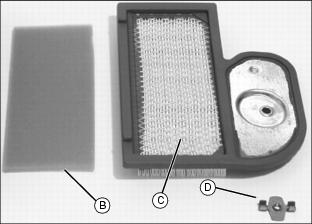

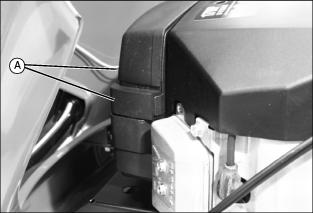

3. Unfasten clips (A) on both sides of air cleaner cover and remove cover.

MX11124

4. Inspect the foam precleaner without removing it. If the foam precleaner (B) is dirty:

· Remove it from the filter carefully, leaving the paper element in the air cleaner housing.

· Wash precleaner in a solution of warm water and liquid detergent.

· Rinse precleaner thoroughly. Squeeze out excess water in a dry cloth until precleaner is completely dry.

5. Inspect the paper filter element without removing it. If the paper filter element (C) is damaged or dirty:

· Remove knob (D) and air cleaner housing.

· Carefully remove the paper filter element from the air cleaner housing.

· Install new paper filter element.

6. Clean air cleaner base very carefully, preventing any dirt from falling into carburetor.

7. Install foam precleaner onto paper filter element.

8. Install air cleaner and knob.

9. Install air cleaner cover and fasten clips.

Checking Spark Plugs

c CAUTION: Avoid injury! Touching hot surfaces can burn skin. The engine, components, and fluids will be hot if the engine has been running. Allow the engine to cool before servicing or working near the engine and components.

1. Park machine safely (See Parking Safely in the Safety section).

2. Lift hood.

MX31361

MX31362

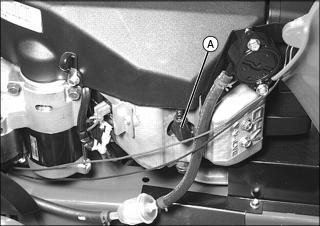

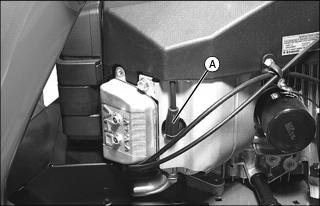

3. Disconnect spark plug wire (A), one on each side of engine.

4. Remove each spark plug.

5. Clean spark plug carefully with a wire brush.

6. Inspect spark plug for:

· Cracked porcelain.

· Pitted or damaged electrodes.

· Other wear or damage.

NOTE: In Canada, replace spark plug with resistor plug only.

7. Replace spark plugs as necessary.

M85200

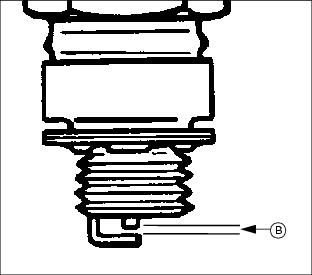

8. Check plug gap (B) with a wire feeler gauge. To change gap, move the outer electrode.

· For LT190, gap must be 1 mm (0.040 in.).

9. Install and tighten spark plugs:

· For LT190, tighten to 15 N·m (11 lb-ft).

10. Connect spark plug wires and lower hood.

Adjusting Carburetor

NOTE: Carburetor is calibrated by the engine manufacturer and is not adjustable.

If engine is operated at altitudes above 1829 m (6,000 ft), some carburetors may require a special high altitude main jet. See your authorized dealer.

If engine is hard to start or runs rough, check the TROUBLESHOOTING section of this manual.

Possible engine surging will occur at high throttle with transmission in "N" neutral and mower engagement lever disengaged. This is a normal condition due to the emission control system.

After performing the checks in the troubleshooting section and your engine is still not performing correctly, contact your authorized dealer.

Replacing Fuel Filter

c CAUTION: Avoid injury! Fuel vapors are explosive and flammable: · Do not smoke while handling fuel. · Keep fuel away from flames or sparks. · Shut off engine before servicing. · Cool engine before servicing. · Work in a well-ventilated area. · Clean up spilled fuel immediately.

NOTE: Change filter when fuel is low.

1. Park machine safely. (See Parking Safely in the Safety section).

2. Lift hood.

3. Let engine cool.

4. Put a drain pan under fuel filter.

MX31345

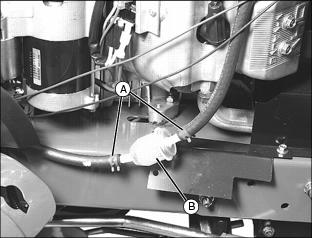

5. Slide hose clamps (A) away from fuel filter (B) using pliers.

6. Disconnect hoses from filter.

7. Connect hoses to new filter making sure the filter arrow is pointing in the direction of the fuel flow.

8. Install clamps and check for leaks.

9. Lower hood.
