Assembly

Charge and Connect Battery

c CAUTION: Avoid injury! The battery produces a flammable and explosive gas. The battery may explode: · Do not smoke or have open flame near battery. · Wear eye protection and gloves. · Never check battery charge by placing a metal object across the posts. Use a voltmeter or hydrometer. · Do not jump start or charge a frozen battery. Warm battery to 16°C (60°F).

1. Remove and discard the red (+) positive, and black negative (-) protective caps from the battery terminals.

2. Charge the battery.

3. Clean both battery terminals and battery cable ends with a wire brush until bright.

MIF

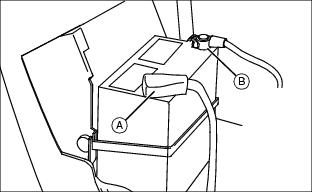

4. Connect red positive (+) cable (A) to battery. Apply petroleum jelly or silicone spray to terminal to prevent corrosion. Make sure connection is tight. Install the red terminal cover.

5. Connect black negative (-) cable (B) to battery. Apply petroleum jelly or silicone spray to terminal to prevent corrosion. Make sure connection is tight.

Install Steering Wheel

1. Put John Deere Multi-Purpose lubricant or an equivalent on the steering shaft.

2. Install steering wheel with John Deere logo in the upright position.

MX7592

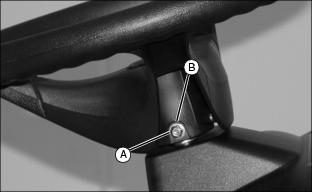

3. Install shoulder bolt (A). Drive bolt in until head of bolt contacts steering wheel.

4. Install washer and nut (B).

5. Tighten lock nut until it is snug. Do not pull washer or head of bolt into steering wheel.

Install Mower Gage Wheels (48 Inch Mower)

NOTE: Gage wheels are located inside machine hood and attaching hardware is installed on mower deck for shipping. Hardware is not installed in correct hole position for operation.

AMA10306_3A

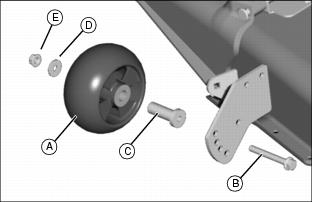

1. Install four mower gage wheels (A) to the mower brackets using one bolt (B), bushing (C), washer (D), and nut (E). (See Adjusting Mower Deck Wheels in Operating section.)

2. Tighten nut to 37 N·m (27 lb-ft.).

3. Adjust mower level before operation.

Install Mower Discharge Chute

c CAUTION: Avoid injury! Rotating blades can pick up and throw debris laying in grass. Do not operate mower without discharge chute or entire grass catcher in place. Mower discharge chute is spring-loaded. Hold chute firmly on mower deck when installing. After installing, check that hinge on chute is working properly. Open chute and release it. Chute must spring back to the lowered position.

NOTE: Your mower deck may be shipped with or without discharge chute installed.

1. Hold chute firmly on mower deck when installing.

M47397

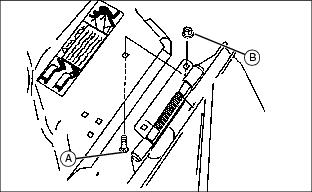

2. Install mower discharge chute to mower deck with two bolts (A) and lock nuts (B).

3. Tighten nuts to 20 N·m (15 lb-ft).

4. Check hinge action by opening and releasing the chute. The chute must spring back completely to the lowered position.

Install Belt Guide (For Machine Without Deck)

NOTE: If you purchased a machine and a deck separately, you will need to install a belt guide on the machine. This belt guide will come packaged with the machine.

If you switch decks, you will need to install the appropriate belt guide (38-inch/42Freedom, 42C, or 48C).

MX11151

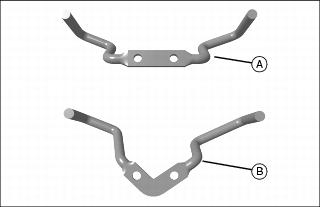

Picture Note: Top belt guide (M126531) for 38-inch or Freedom42 deck; bottom belt guide (M144520) for 42C deck

MX11130a

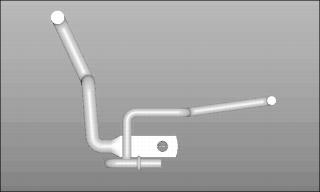

Picture Note: Belt guide for 48C deck

1. Select appropriate belt guide for your deck: 38-Inch or Freedom42 (A), or 42C (B), or 48C.

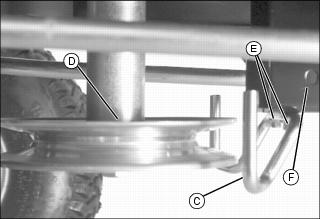

2. Align belt guide (C) at front of machine with U-hooks facing jacksheave (D).

MX11130

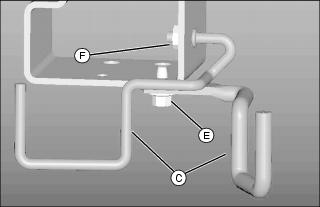

· For 48C, align belt guide as shown above.

3. For 38-inch, Freedom42, or 42C install two screws (E) and tighten.

· For 48C, install one screw (E) and one flange nut (F) and tighten.
