Removing and Storing Attachment
Put Tiller in Transport Position

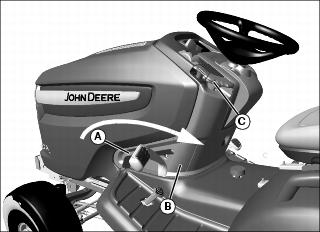

1. Grasp handle (A) and pull slightly upward on tiller to relieve tension on transport lever (B). Pull out and rotate the transport lever to engage locking pin in slot (C).
2. Pivot tiller up and forward as far as it will go.
3. Rotate transport lever (B) until locking pin disengages from slot (C). Allow transport lever to lock into hole in shield (D).
Put Wheels in Down Position

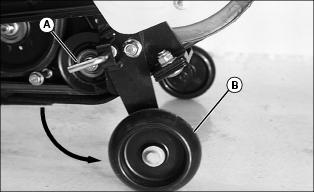

1. Pull and hold out wheel locking pin (A).
2. Swing wheel assembly (B) into down position. Make sure locking pin engages to lock wheel in down position. Repeat for other wheel assembly.
IMPORTANT: Avoid damage! Be sure machine is properly ballasted (see Ballasting Requirement in this section). |
Remove Lift Arm and Lift Rod
c CAUTION: Avoid injury! If the lift pedal is spring-assisted it may have unexpected movement.
|
1. Pull lift pedal (A) back by hand to lower tiller to the lower/down position (B). Pull up lock lever (C) to lock attachment in the lowered position.
2. Swing idler sheave to loosen belt tension.
3. Remove belt from tractor drive sheave.

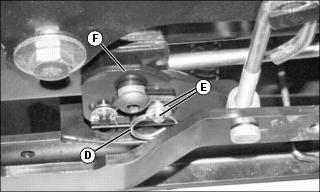

4. Remove locking ring (D), pin and washer (E) from both frame clip latches (F).
5. Swing open both clip latches (F).
6. Install spring locking pins in clip latches for storage.

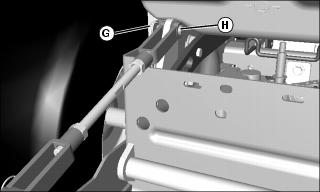

7. Remove locking ring (G), and pin (H). Install the hardware to the yoke for storage.
8. Lift tiller off back of tractor.
Storing Attachment
NOTE: Some of the following steps may not apply to your attachment.
1. Remove attachment from machine.
2. Clean attachment and driveline, if equipped.
3. Remove any shields if needed to clean out all debris.
4. Repair or replace worn, bent, or damaged parts. Tighten loose hardware.
5. Apply paint to painted surfaces where needed to prevent rust.
6. Apply thin coat of grease to blades to prevent rust.
7. Lubricate any pivot points with engine oil to prevent rust.
8. Lubricate any grease points.
IMPORTANT: Avoid damage! Abrasive surfaces can damage attachment. Store attachment on non-abrasive surface or on wooden blocks. |
9. If storing attachment outdoors, block up attachment if possible and place a waterproof cover over it.
