Operating - Controls

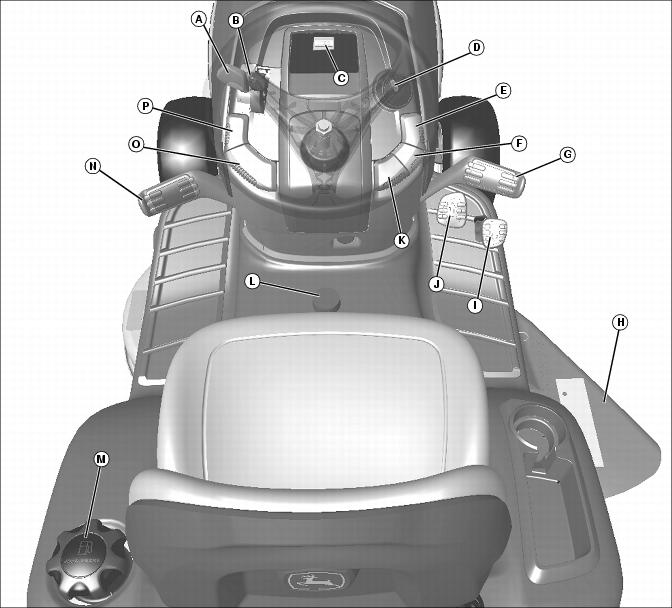

Operator Station Controls

MX36280a

A - Throttle Lever

B - Choke Lever

C - Hour Meter

D - Key Switch

E - Mower/PTO Engagement Switch

F - Cruise Control Lever

G - Brake Pedal

H - Mower Deflector

I - Reverse Travel Pedal

J - Forward Travel Pedal

K - Park Brake Lever

L - Mower Cutting Height Knob

M - Fuel Tank Cap

N - Mower Lift Pedal

O - Mower Lift Lock Lever

P - Light Switch
