Operating - Controls

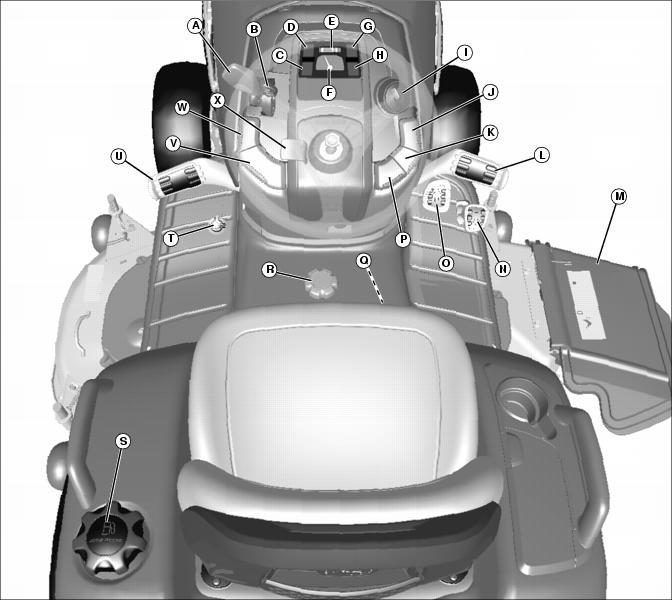

Operator Station Controls

MX36620

A - Throttle Lever

B - Choke Lever

C - Oil Pressure Indicator

D - Battery Discharge Indicator

E - Hour Meter/Service Reminder

F - Fuel Gauge

G - Coolant Temperature Indicator (X520, X540)

H - Mower/PTO Light

I - Keyswitch

J - Mower/PTO Engagement/RIO Switch

K - Cruise Control Handle

L - Brake Pedal

M - Mower Deflector

N - Reverse Travel Pedal

O - Forward Travel Pedal

P - Park Brake Handle

Q - Seat Adjustment Lever

R - Mower Cutting Height Knob

S - Fuel Tank Cap

T - Traction Assist Pedal

U - Mower Lift Pedal (X500, X520)

V - Mower Lift Lock Handle (X500, X520); Hydraulic Mower Lift Handle (X534, X540)

W - Light Switch

X - Tilt Steering Lever (X534, X540)
