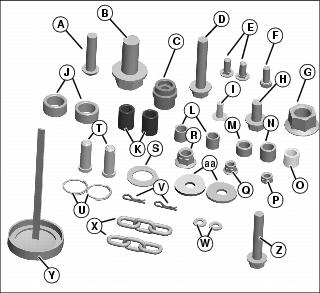

2

Bolt, Socket Head (A)

2

Bolt, M20x45 (Frame to housing pivot) (B)

1

Bushing (Attach lift arm to tractor) (C)

1

Screw, M12x70 (Right rear mount) (D)

2

Carriage Bolt, Right, M8x20 (Chain to leveling door) (E)

1

Bolt, M8x20 (Stop on lift arm) (F)

2

Nut, M20 (On frame to housing pivot) (G)

2

Screw, M12x25 (H)

2

Pin, Drilled (Chain to housing) (I)

2

Bushing, 28.6 x 15 (On frame to housing pivot) (J)

2

Spacer, 19 OD x 27 (on rear mount) (K)

2

Spacer, 16 OD x 15 (long spacer on front mount) (L)

1

Bushing, Shorter Pivot (19 OD x 15) (M)

1

Bushing, Longer Pivot (19 OD x 17) (N)

1

Bushing, 19.5 OD x 15.3 (Hydraulic Lift Arm to Tractor) (O)

1

Locknut, M8 (Stop on lift arm) (P)

2

Locknut, Flange M8 (Chain to leveling door) (Q)

6

Locknut, M12 (R)

1

Washer, 38x26x1.2 (front lift link to tractor) (S)

2

Pin, Drilled (Yokes to lift linkage) (T)

2

Locking Ring (Pins to yoke) (U)

2

Pin, Spring Locking (On each chain to housing) (V)

2

Washer, 16x8.4x1.6 (On leveling door pins) (W)

2

Chain (X)

1

Dipstick (Y)

1

Bolt, M12x65 (Left rear mount) (Z)

2

Washer, M13x37x3 (On rear mounts) (aa)
