Safety Labels
Understanding The Machine Safety Labels
The machine safety labels shown in this section are placed in important areas on your machine to draw attention to potential safety hazards.
On your machine safety labels, the words DANGER, WARNING, and CAUTION are used with this safety-alert symbol. DANGER identifies the most serious hazards.
The operator's manual also explains any potential safety hazards whenever necessary in special safety messages that are identified with the word, CAUTION, and the safety-alert symbol.

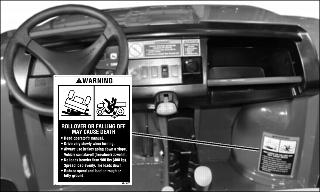

WARNING: ROLLOVER OR FALLING OFF MAY CAUSE DEATH
· Drive very slowly when turning.
· Always use brakes going down a slope. Vehicle can take-off (freewheel) downhill.
· No loads heavier than 900 lbs (408 kg). Spread load evenly. Tie loads down.
· Reduce speed and load on rough or hilly ground.
CAUTION
WARNING: YOUNG DRIVERS INCREASE CHANCE OF DEATH
· Young drivers may not be able to control vehicle.
· No drivers younger than 16 years old.
WARNING: AVOID INJURY FROM EXPLOSION
· Do not place gas container inside cargo box bed when filling.
WARNING: RIDERS CAN FALL OFF AND BE KILLED
Picture Note: Two decals. One on each side of load guard.
· Maximum of one person to a seat
· No riders in box or anywhere else
DANGER:
SHIELD EYES
· EXPLOSIVE GASES CAN CAUSE BLINDNESS OR INJURY.
NO
SULFURIC ACID
CAN CAUSE BLINDNESS OR SEVERE BURNS.
KEEP OUT OF REACH OF CHILDREN.

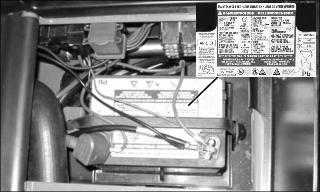

Emission Control System Certification Label
NOTE: Tampering with emission controls and components by unauthorized personnel may result in severe fines or penalties. Emission controls and components can only be adjusted by EPA and/or CARB authorized service centers. Contact your John Deere Commercial and Consumer Equipment Retailer concerning emission controls and component questions.
The presence of an emissions label signifies that the engine has been certified with the United States Environmental Protection Agency (EPA) and/or California Air Resources Board (CARB).
The emissions warranty applies only to those engines marketed by John Deere that have been certified by the EPA and/or CARB; and used in the United States and Canada in off-road mobile equipment.
Emission Compliance Period
If your engine has the emission compliance category listed on the emission control system certification or air index label, this indicates the number of operating hours for which the engine has been certified to meet EPA and/or CARB emission requirements. The following table provides the engine compliance period in hours associated with the category found on the certification label.
Canadian Electromagnetic Compatibility (EMC) Compliance
This spark ignition system complies with Canadian ICES-002.
SAE J2258 and ASME B56.8 Compliance
This vehicle conforms to SAE J2258. With installation of the optional horn kit, this vehicle conforms to ASME B56.8.
