Removing and Storing

Remove Ballast

c CAUTION: Avoid injury! When the attachment is removed, also remove any ballast that was added to the machine. Use only attachments and accessories recommended by the manufacturer.

Remove front ballast. This will ensure proper operation of the machine when material collection system is not installed.

Remove Rear Bagger Chute

38-Inch Mower Decks

M70256

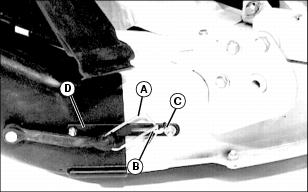

1. Release rubber strap hook (A) from tab (B).

2. Loosen adjusting hardware (C), if desired.

3. Remove retaining strap (D) from tab (B). Lift chute from mower deck.

M96602

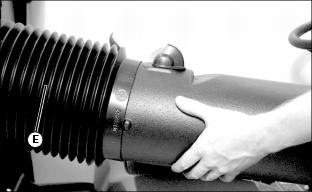

4. Remove bagger chute from upper chute (E) at hopper assembly.

42C Mower Decks

MX10382

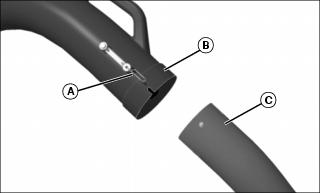

1. Unhook rubber strap latch (A) connecting upper chute (B) to lower chute (C). Remove upper chute (B).

MX38676

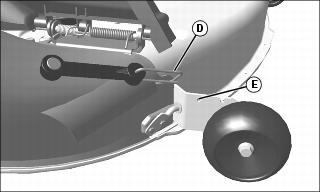

2. Release front rubber strap hook (D) from hole (E) in gage wheel bracket.

MX38675

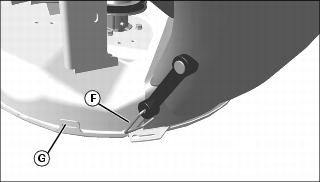

3. Release rear rubber strap hook (F) from slot (G) on deck.

4. Lift discharge chute deflector and remove lower chute from mower.

Remove Power Flow Chute

MX8426

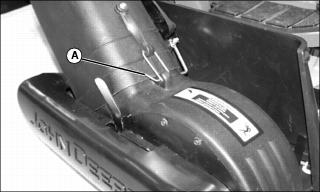

1. Release strap hook (A) from the Power Flow.

M96602

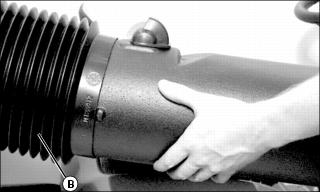

2. Remove bagger chute from upper chute (B) at hopper assembly.

Removing Hopper Assembly

NOTE: After removing hopper assembly, always install the attaching hardware to the hopper frame to prevent loss of parts.

M36501

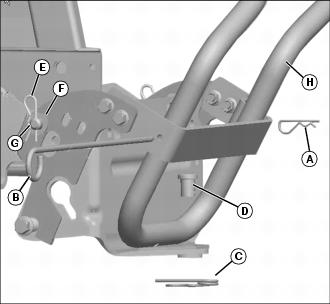

1. Remove spring locking pin (A) and bagger pin (B) securing H-frame (H) to receiver frame. Lift H-frame from receiver.

2. Remove spring locking pin (C) and clevis pin (D) from hitch plate.

3. Remove spring locking pins (E) and washers (F) from both sides of frame.

4. From inside of rear frame, remove clevis pins (G). Lift receiver from rear frame.

Change Mower Blades

If special blades were installed for bagging, remove them. Install correct blades for the next mowing applications.

Storing Safety

c CAUTION: Avoid injury! Fuel vapors are explosive and flammable. Engine exhaust fumes contain carbon monoxide and can cause serious illness or death: • Run the engine only long enough to move the machine to or from storage. • Machine fires and structure fires can occur if a machine is stored before allowing it to cool, or if debris is not removed from around the engine and muffler, or if stored near combustible materials. • Do not store vehicle with fuel in the tank inside a building where fumes may reach an open flame or spark. • Allow the engine to cool before storing the machine in any enclosure.

Storing Attachment

NOTE: Some of the following steps may not apply to your attachment.

1. Remove any grass clippings from MCS or bagger attachment.

2. Remove attachment from machine.

3. Clean attachment and driveline, if equipped, with water pressure from a hose.

4. Remove any shields if needed to clean out all debris.

5. Repair or replace worn, bent, or damaged parts. Tighten loose hardware.

6. Apply paint to painted surfaces where needed to prevent rust.

7. Apply thin coat of grease to blades or tines to prevent rust.

8. Lubricate any pivot points with engine oil to prevent rust.

9. Lubricate any grease points.

10. If storing attachment outdoors, block up attachment if possible and place a waterproof cover over it.
