Service
Replacing the Grass Bags
1. Park machine safely. (See Parking Safely in the SAFETY section.)

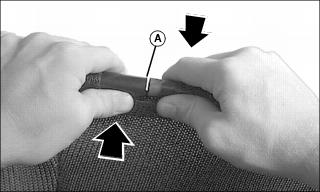

3. Slide bag around frame until frame seam (A) appears at bag opening.
IMPORTANT: Avoid damage! Do not bend ends of frame tube more than 13 mm (1/2 in.) or frame may become distorted. |
4. Pull apart the frame tube. Gently push the tube ends in opposite directions to provide 13 mm (1/2 in.) clearance for bag removal.

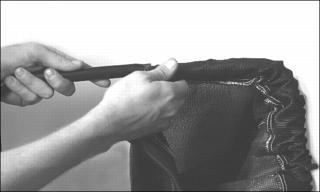

5. Work the bag material around the frame tube until the bag is removed.
6. Work the new bag onto the frame tube.
7. Connect the ends of the frame tube.
8. Adjust bag so safety decal is visible at rear of machine when bag is installed.
