Installing
Checking Tire Pressure
Check tire pressure of machine before installing bagger. See your machine operator’s manual.
Installing Ballast
Front ballast is recommended to counter-balance the rear bagger:
• Install two 18 kg (40 lb) suitcase weights to front of machine. See your machine operator’s manual.
Remove ballast when bagger is not installed to ensure proper steering control and stability.
Installing POWER FLOW™
Install POWER FLOW to mower deck. See your POWER FLOW operator’s manual.
Installing Hopper Assembly
IMPORTANT: Avoid damage! Hopper should be installed and removed on a non-abrasive surface to prevent scratching the hopper case. |
1. Park the machine safely. (See Parking Safely in the SAFETY section.)
2. Position hopper assembly behind the machine. Make sure frame arms (A) are aligned with bagger mounting hardware at rear frame of machine.

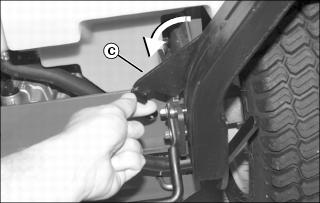

3. Lift open latch levers (B) and lock lever (C).
4. Place frame arms (A) around bagger mounting hardware at rear frame of machine.
5. Push latch levers (B) down and below roll pins (D) to secure on both sides.
6. Pivot entire hopper assembly up toward machine until latches (E) engage top edge of rear frame (F).
7. Move lock lever (C) down to secure hopper assembly to machine frame.
8. Install the grass bags. Leave hopper open to install bagging chute.
Adjusting Hopper
NOTE: Machine must be parked on a level surface with tires inflated to the correct air pressure before adjusting the hopper.
2. Stand to the side of the hopper. Support frame (A) should be angled 2-3° forward of level. Adjust hopper if necessary:
a. Loosen flange nuts (B) on hopper support rods.
b. Adjust nuts until support frame is angled slightly forward.
Installing Bagging Chute
1. Insert round end of chute (A) into hopper opening (B). Guide chute into hopper far enough to provide clearance for connection to the POWER FLOW.

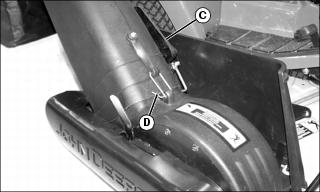

2. Lift and hold open exhaust door (C) on the POWER FLOW.
3. Slide chute completely onto blower outlet.
