Service


IMPORTANT: Avoid damage! Use recommended John Deere greases to avoid component failure and premature wear. The recommended John Deere greases are effective within an average air temperature range of -29 to 135 degrees C (-20 to 275 degrees F). If operating outside that temperature range, contact your Servicing dealer for a special-use grease.

• John Deere Multi-Purpose SD Polyurea Grease

• John Deere Multi-Purpose HD Lithium Complex Grease

If not using any of the preferred greases, be sure to use a general all-purpose grease with an NLGI grade No.2 rating.

Wet or high speed conditions may require use of a special-use grease. Contact your Servicing dealer for information.

M63419

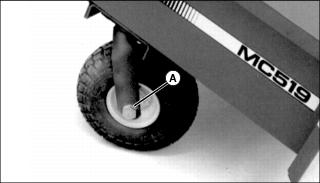

Lubricate each wheel bearing (A) with John Deere multipurpose grease or an equivalent

M63420

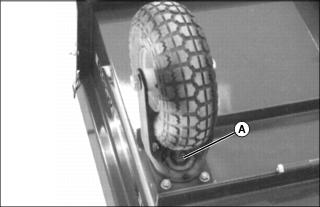

Lubricate each caster (A) with John Deere multipurpose grease or an equivalent.

1. Check tire inflation pressure on tractor tires.

2. Check tire inflation pressure on material collection tires.

• See your tractor operator's manual for proper inflation pressure in your tractor tires.

• Material collection cart tire inflation pressure should be 345 kPa (50 psi).
