Installing

Install Proper Ballast

c CAUTION: Avoid injury! Machine can become unstable when operating with attachment. Ballast is required when the attachment is installed. When the attachment is removed, also remove any ballast that was added to the machine. Use only attachments and accessories recommended by the manufacturer.

Four cast iron rear wheel weights are required for ballast when operating your MC519 cart.

c CAUTION: Avoid injury! Excessive towed load can cause loss of traction and loss of control on slopes. Stopping distance increases with speed and weight of towed load. Total towed weight must not exceed combined weight of pulling machine, ballast and operator.

NOTE:

• Machine, ballast and operator combined weight must exceed cart weight.

• Reduce loaded cart weight on slopes and/or slippery surfaces.

• Traction decreases in reverse

Do not exceed 227 kg (500 lb) cart load.

Remove ballast when the cart is removed. This will ensure proper operation of the machine when the cart is not installed. See your authorized service center for recommended weights on your machine.

Installing MC519 Cart

1. Park machine safely. (See Parking Safely in the SAFETY section.)

NOTE: Quik-tatch bracket must be installed to cart before installing the cart to the tractor.

M72479

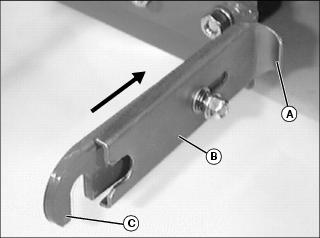

2. Grasp tab (A) and pull plate (B) out and slide to the rear to expose hook (C).

M72483

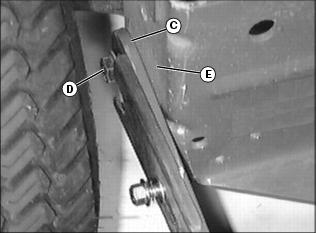

3. Place hook (C) over spacers (D) fastened with hex head bolts to tractor rear frame (E).

NOTE: Plate (B) must fit between washer (G) and hitch plate side (H), not placed to the outside of the washer.

M72484

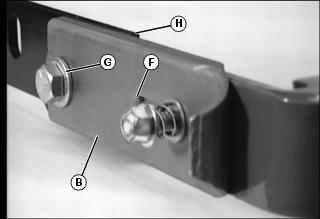

4. Slide plate (B) forward until plate locks into position. Tab (F) on backside of plate must seat completely into hole on quik-tatch bracket.

Adjust Slide Bracket Spring

1. Park machine safely. (See Parking Safely in the SAFETY section.)

M72484

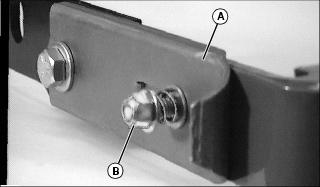

2. Adjust spring tension to allow ease of movement for slide plate (A) by turning nut (B) counterclockwise to loosen or clockwise to tighten.
