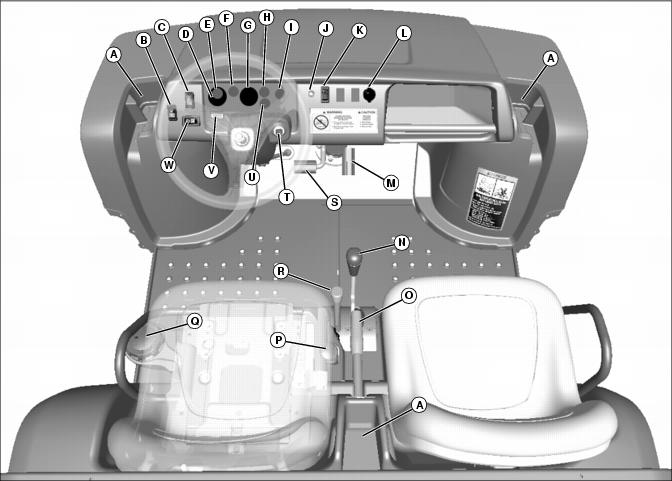

Operating Controls

MX37242

A - Storage Bins

B - Cargo Box Power Lift Switch (Optional)

C - Hazard Lights Switch (Optional)

D - Voltmeter (Optional)

E - Battery Discharge Indicator Light

F - Engine Coolant Temp / Glow Plug Indicator Light

G - Speedometer (Optional)

H - Park Brake Indicator Light

I - Traction Assist (Differential Lock) Indicator Light

J - Horn Switch (Optional)

K - Headlight Switch

L - 12 VDC Accessory Outlet

M - Accelerator Pedal

N - Gear Shift Lever

O - Park Brake Lever

P - Fuel Gauge

Q - Fuel Tank Cap

R - Traction Assist (Differential Lock) Lever

S - Brake Pedal

T - Key Switch

U - Engine Oil Pressure Indicator Light

V - Hourmeter

W - Turn Signal Switch (Optional)
