Service Lubrication

Grease

IMPORTANT: Avoid damage! Use recommended John Deere greases to avoid component failure and premature wear.

The recommended John Deere greases are effective within an average air temperature range of -29 to 135 degrees C (-20 to 275 degrees F).

If operating outside that temperature range, contact your Servicing dealer for a special-use grease.


The following greases are preferred:

• John Deere Multi-Purpose SD Polyurea Grease

• John Deere Multi-Purpose HD Lithium Complex Grease

If not using any of the preferred greases, be sure to use a general all-purpose grease with an NLGI grade No.2 rating.

Wet or high speed conditions may require use of a special-use grease. Contact your Servicing dealer for information.

Lubricating Rear Steering Pivot (4WS Models)


MX15404

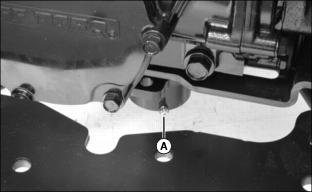

Lubricate joint (A).


MX15405

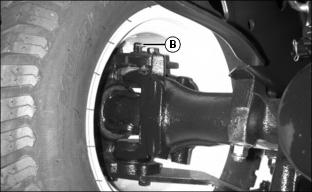

Lubricate rear wheel pivot (B) on both ends of rear axle.

Lubricating Steering Cylinder Ball Joints


MX15409

Picture Note: 4WS model shown.

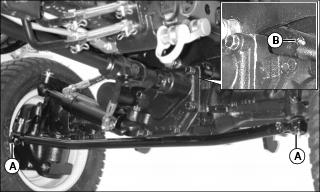

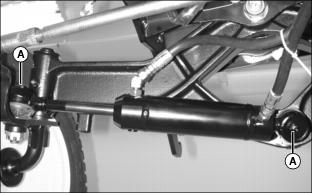

Lubricate ball joints (A) at each end of the steering cylinder.

Lubricating Front Axle (2WD Models)


MX15406

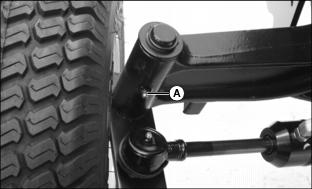

Picture Note: Left king pin shown.


MX15407

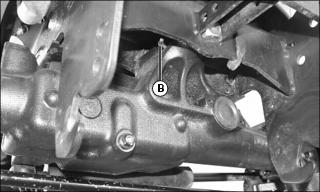

Picture Note: Right king pin shown.


MX15408

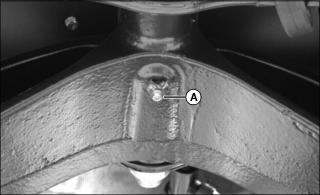

Picture Note: Axle center pivot shown.

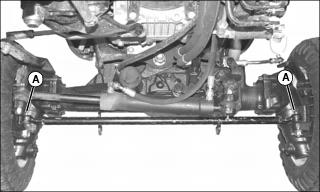

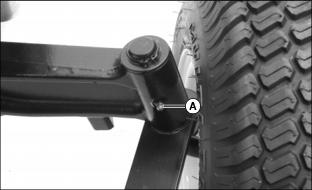

Lubricate grease fittings (A) in three locations at front axle.

Lubricating Machine Grease Fittings (X728)


MX13580, MX13581


MX13583, MX13584, MX13585

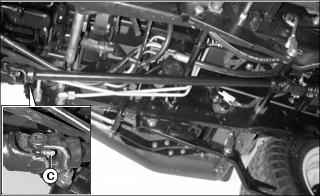

Lubricate grease fittings at both tie rod ends (A), the front axle center pivot (B) and the front driveshaft joint (C).

Lubricating Machine Grease Fittings (X729)


MX39548


MX39549

Lubricate grease fittings at both tie rod ends (A), and the front axle center pivot (B).
