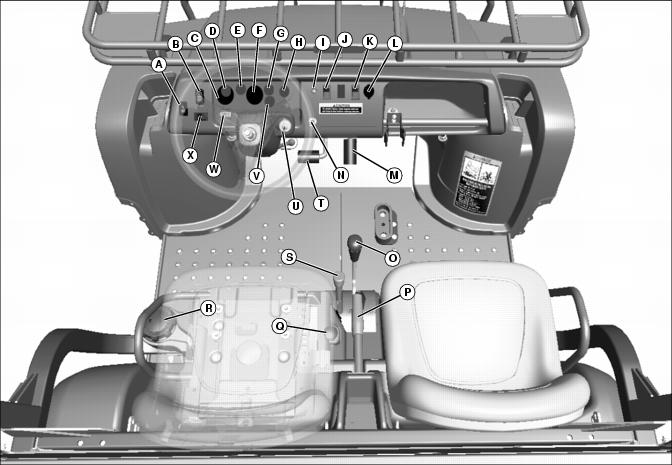

Operating Controls

MX37312

A - Cargo Box Power Lift Switch

B - Hazard Lights Switch (Optional)

C - Voltmeter (Optional)

D - Battery Discharge Indicator Light

E - Engine Coolant Temp / Glow Plug Indicator Light

F - Speedometer (Optional)

G - Park Brake Indicator Light

H - Traction Assist (Differential Lock) Indicator Light

I - Horn Switch (Optional)

J - Headlight Switch

K - Blackout Light Switch

L - 12 VDC Accessory Outlet

M - Accelerator Pedal

N - Steering Wheel Lock Cable

O - Gear Shift Lever

P - Park Brake Lever

Q - Fuel Gauge

R - Fuel Tank Cap

S - Traction Assist (Differential Lock) Lever

T - Brake Pedal

U - Ignition Switch

V - Engine Oil Pressure Indicator Light

W - Hourmeter

X - Turn Signal Switch (Optional)
