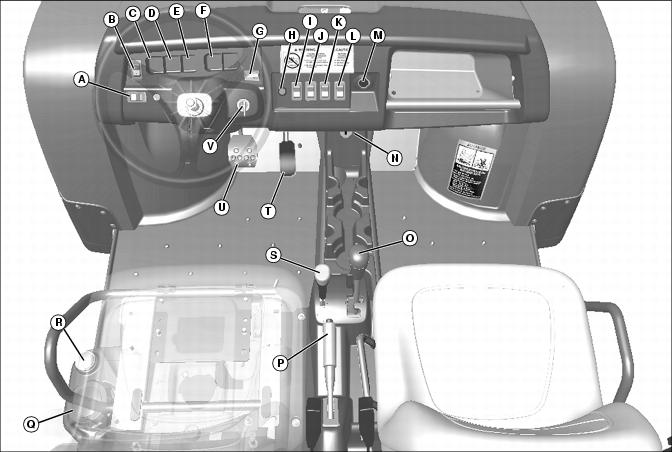

A

Turn Signal Switch (Optional)

L

Hazard Lights Switch (Optional)

B

Cargo Box Power Lift Switch (Optional)

M

12V DC Accessory Outlet

C

System Diagnostic Light

N

Speed Limiter Key Switch (Optional)

D

Engine Oil Pressure Light

O

Transaxle Shift Lever

E

Engine Coolant Temperature Light

P

Park Brake Lever

F

Park Brake Indicator Light

Q

Fuel Tank Cap

G

Hourmeter

R

Fuel Gauge

H

Horn Switch (Optional)

S

Traction Assist (Differential Lock) Lever

I

2WD / 4WD Switch

T

Accelerator Pedal

J

Front Blade Lift/Lower Switch (Optional)

U

Brake Pedal

K

Headlight Switch

V

Key Switch
