Service Electrical

Battery Warning

Service the Battery Safely

c CAUTION: Avoid injury! Battery electrolyte contains sulfuric acid. It is poisonous and can cause serious burns: • Wear eye protection and gloves. • Keep skin protected. • If electrolyte is swallowed, get medical attention immediately. • If electrolyte is splashed into eyes, flush immediately with water for 15-30 minutes and get medical attention. • If electrolyte is splashed onto skin, flush immediately with water and get medical attention if necessary. The battery produces a flammable and explosive gas. The battery may explode: • Do not smoke near battery. • Wear eye protection and gloves. • Do not allow direct metal contact across battery posts. • Remove negative cable first when disconnecting. • Install negative cable last when connecting.

Checking the Battery (Sealed Batteries)

NOTE: Do not attempt to open, add fluid or service battery. Any attempt to do so will void warranty.

• Keep battery and terminals clean.

• Keep battery bolts tight.

• Keep small vent holes open.

• Recharge, if necessary, at 6-10 amperes for 1 hour.

Removing and Installing Battery

Removing

1. Park the vehicle safely. (See Parking Safely in the SAFETY section.)

2. Raise bucket seat or remove bench seat base.

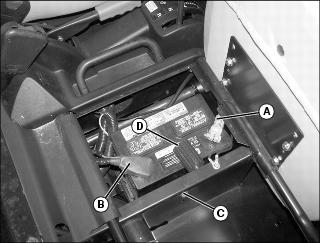

MX44652

3. Disconnect all black negative cables (A) from battery first.

4. Slide back rubber protective cover (B) and disconnect all red positive cables.

5. Loosen hardware (C) that secures battery hold-down (D) and pivot hold-down away from battery.

6. Lift battery from vehicle.

Installing

1. Install battery into vehicle with negative (-) terminal positioned toward front of vehicle and the battery seated properly in the battery tray.

2. Pivot battery hold-down firmly against battery and tighten retaining hardware to secure.

3. Connect all red positive cables to positive (+) battery terminal first. Tighten the connections.

4. Connect all black negative cables to negative (-) battery terminal. Tighten the connections.

5. Apply general purpose grease or silicone spray to battery terminals to help prevent corrosion.

6. Slide protective cover down the battery positive cable and seat it over the positive (+) terminal.

7. Return or install seat.

Cleaning Battery and Terminals

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Disconnect and remove battery.

3. Wash battery with solution of four tablespoons of baking soda to one gallon of water. Be careful not to get the soda solution into the cells.

4. Rinse the battery with plain water and dry.

5. Clean terminals and battery cable ends with wire brush until bright.

6. Install battery.

7. Attach cables to battery terminals, beginning with the positive cable, using washers and nuts.

8. Apply spray lubricant to terminal to prevent corrosion.

Using Booster Battery

c CAUTION: Avoid injury! The battery produces a flammable and explosive gas. The battery may explode: • Do not smoke or have open flame near battery. • Wear eye protection and gloves. • Do not jump start or charge a frozen battery. Warm battery to 16?C (60?F). • Do not connect the negative (-) booster cable to the negative (-) terminal of the discharged battery. Connect at a good ground location away from the discharged battery.

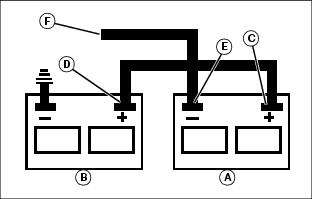

M71044

A - Booster Battery

B - Disabled Vehicle Battery

1. Connect positive (+) booster cable to booster battery (A) positive (+) post (C).

2. Connect the other end of positive (+) booster cable to the disabled vehicle battery (B) positive (+) post (D).

3. Connect negative (–) booster cable to booster battery negative (–) post (E).

4. Connect the other end (F) of negative (–) booster cable to a metal part of the disabled machine engine block away from battery.

5. Start the engine of the disabled machine and run machine for several minutes.

6. Carefully disconnect the booster cables in the exact reverse order: negative cable first and then the positive cable.

Replacing Headlight Bulb

1. Park the vehicle safely. (See Parking Safely in the SAFETY section.)

2. Locate headlight housing under the front fender.

c CAUTION: Avoid injury! Halogen light bulb contains gas under pressure. The bulb may shatter if the glass is scratched or dropped. Wear eye protection and handle bulb with care when replacing.

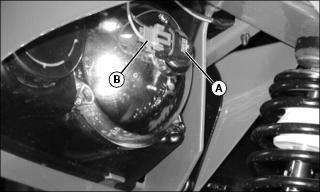

MX31034

3. Rotate bulb socket (A) 1/8 of a turn counterclockwise and remove socket from housing.

4. Disconnect wire connector (B) from socket. Discard the bulb/socket assembly.

5. Connect wiring connector to new bulb/socket assembly. Install the assembly into housing and rotate 1/8 turn to lock in place.

6. Test head lamp function.

Replacing Instrument Panel Bulbs

1. Park the vehicle safely. (See Parking Safely in the SAFETY section.)

2. Open hood.

3. Remove storage tray.

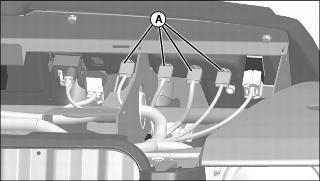

MX38684

4. Reach under instrument panel and remove appropriate bulb socket (A) from plastic housing.

• Rotate bulb socket 1/3 turn.

• Pull socket straight outward.

5. Remove bulb from socket. Discard bulb.

6. Install new bulb in socket.

7. Align and insert bulb socket into plastic housing. Turn socket 1/3 turn to lock in place.

8. Install storage tray.

9. Close hood.

Checking and Replacing Fuses

1. Park machine safely. (See Parking Safely in the SAFETY section.)

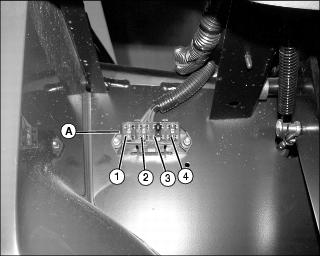

MX45999

2. Fuse identification:

3. Pull fuse from fuse block (A).

4. Check visually for broken filament in fuse.

5. Push new fuse of correct amp rating into proper position in fuse block.

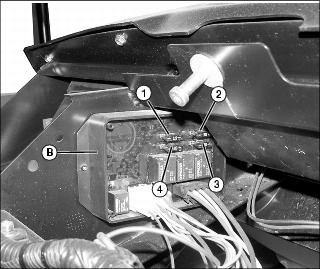

MX46000

6. Raise hood and remove storage tray. Pull fuse from relay block (B) under storage tray.

7. Fuse identification:

8. Check visually for broken filament in fuse.

9. Push new fuse of correct amp rating into proper position in fuse block.

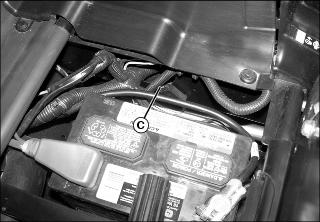

MX46001

10. Raise passenger’s seat. Pull 10 amp center power port fuse (C) from wiring harness.

11. Check visually for broken filament in fuse.

12. Push new fuse of correct amp rating into proper position in fuse block.
