Specifications

80 lb Spreader

Model Number LP25010

Capacity:

Weight 36.2 kg (80 lb)

Loaded Weight 52.1 kg (115 lb)

Volume 45306 cm3 (2764 in.3)

Tires:

Pneumatic 4.10/3.50 - 4 Tubeless NHS

Inflation Pressure 207 kPa (2 bar) (30 psi)

Hopper Polyethylene

125 lb Spreader

Model Number LP25011

Capacity:

Weight 56.6 kg (125 lb)

Loaded Weight 74.8 kg (165 lb)

Volume 70792 cm3 (4320 in.3)

Tires:

Pneumatic 13 x 5 NHS 2-Ply Rating

Inflation Pressure 207 kPa (2 bar) (30 psi)

Hopper Polyethylene

175 lb Spreader

Model Number LP25012

Capacity:

Weight 79.3 kg (175 lb)

Loaded Weight 97.5 kg (215 lb)

Volume 99108 cm3 (6048 in.3)

Tires:

Pneumatic 13 x 5 NHS 2-Ply Rating

Inflation Pressure 207 kPa (2 bar) (30 psi)

Hopper Polyethylene

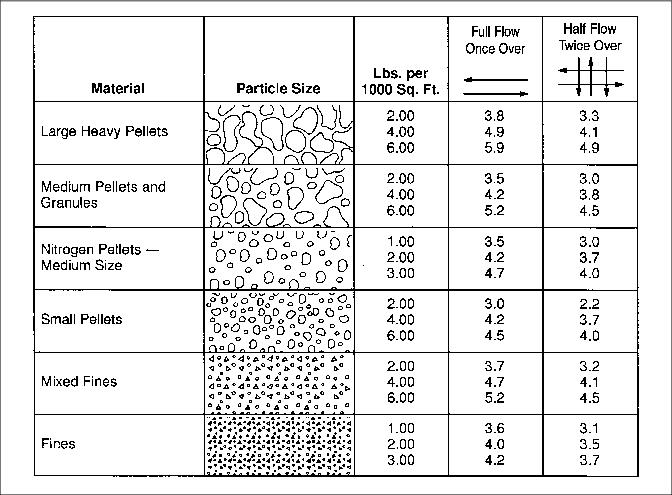

Application Flow Settings (By Material Size and Coverage)

MX40419

NOTE: Use “Full Flow” setting when single pass (once over) operation is planned. Use “Half Flow” setting for two pass (twice over) operation and improved coverage.

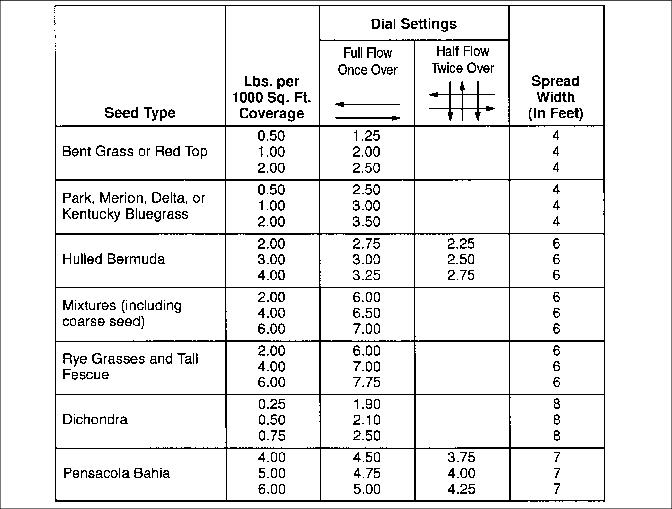

Grass Seed Flow Setting

MX40420

NOTE: Use “Full Flow” setting when single pass (once over) operation is planned. Use “Half Flow” setting for two pass (twice over) operation and improved coverage. Spread width is based on normal (brisk) operating speed of 2.5 miles-per-hour/220 fpm (4.8 kph/80 meters per min.).
