Service

MX34864

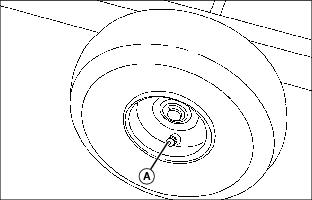

Check tire pressure at point (A).

• Tire pressure should be 207 kPa (30 psi).

• Tire Size:

• 15 and 25 Gallon Sprayer, 4.10 x 3.50 - 4

• 45 Gallon Sprayer, 15 x 6.00 - 6

c CAUTION: Avoid injury! Do not put nozzle tip or other sprayer parts to your lips to blow out dirt. Use compressed air or clean water.

MX34868

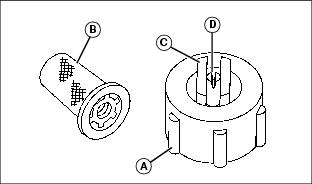

1. Remove spray nozzle (A) from sprayer.

2. Disassemble filter (B) and spray tip (C).

NOTE: Do not use a wire to clean opening (D) in spray tip.

3. Wash filter and spray tip in a non-flammable solvent.

4. Put spray tip in spray nozzle.

5. Put flat side of filter in spray nozzle.

6. Install assembly on sprayer and tighten nozzle.

MX34869

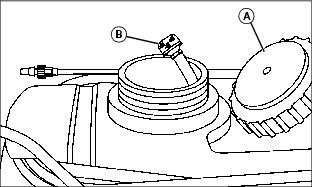

1. Remove tank cover (A).

2. Locate suction screen (B) inside sprayer tank.

3. If necessary, unscrew suction screen and clean with liquid detergent and warm water.

4. If suction screen was removed, install on suction hose and position in lowest depression inside tank.

5. Install and tighten tank cover.

MX13072

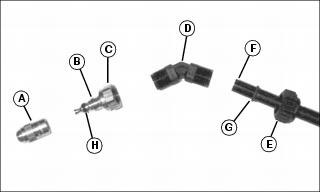

1. Unscrew nozzle (A) from the spray tip (B).

2. Loosen nut (C), and remove the spray tip (B) from the angled fitting (D).

3. Loosen the locknut (E), and remove the angled fitting (D) from the handgun (F).

4. Wash nozzle (A), spray tip (C) and angled fitting (D) with liquid detergent and warm water.

5. Inspect O-rings (G and H). Replace as needed.

6. Install angled fitting (D) on handgun (F), and tighten locknut (E).

7. Slide nut (B) over the spray tip (C), and install on angled fitting (D).

8. Install nozzle (A) on spray tip (C).


IMPORTANT: Avoid damage! The electrical system may be damaged if incorrect replacement fuses are used. Replace the bad fuse with a fuse of the same amp rating.

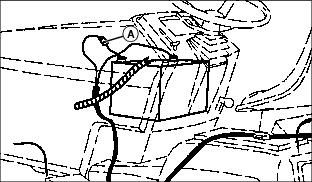

1. Open hood.

M61159

2. Remove fuse (A).

3. Install new 15 amp fuse.

4. Close hood.
