Removing and Storing
Removing Sprayer
1. Park machine safely. (See Parking Safely in the Safety section.)
3. Disconnect the main wiring harness only. Leave all other harnesses installed on machine.
4. Roll up the main harness and store with sprayer.
Portable Sprayer:
• Remove sprayer from the carrying vehicle.
Wheeled Sprayer:

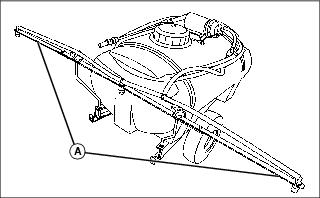

Picture Note: 25 Gallon Sprayer Shown
a. Fold in boom extensions (A).
b. Pull spring locking pin (B) out of hitch pin (C). Remove hitch pin (C).
c. Pull sprayer back from machine.
d. Put hitch pin in sprayer hitch for storage.
Store Sprayer Safely
1. Clean and drain sprayer tank.

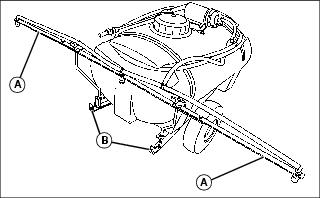

Picture Note: 25 Gallon Sprayer Shown
2. If unit is a wheeled sprayer, fold in boom extensions (A).
3. Remove sprayer from transport vehicle.
4. Check sprayer for worn or damaged parts. Replace parts as needed.
6. Sprayer may be stored on end, with sprayer resting on supports (B).
