Service Engine

Engine Warranty Maintenance Statement

Maintenance, repair, or replacement of the emission control devices and systems on this engine, which are being done at the customer’s expense, may be performed by any non-road engine repair establishment or individual. Warranty repairs must be performed by an authorized John Deere dealer.

Avoid Fumes

c CAUTION: Avoid injury! Engine exhaust fumes contain carbon monoxide and can cause serious illness or death.

Do not run an engine in an enclosed area, such as a garage, even with doors or windows opened.

Move the machine to an outside area before running the engine.

Engine Oil

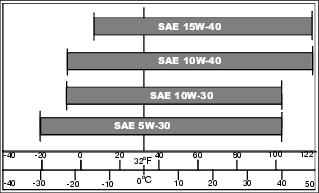

Use oil viscosity based on the expected air temperature range during the period between oil changes.

The following John Deere oils are preferred:

• TURF-GARD™

• PLUS- 4™

• PLUS-50™ II

Other oils may be used if above John Deere oils are not available, provided they meet the following specification:

• API Service Classification SJ or higher

Checking Engine Oil Level


IMPORTANT: Avoid damage! Failure to check the oil level regularly could lead to serious engine problems if oil level is out of the operating range: • Check oil level before operating. • Check oil level when the engine is cold and not running. • Keep oil level between the dipstick marks. • Shut off engine before adding oil.

NOTE: Check oil twice a day if you run engine over 4 hours in a day.

Make sure engine is cold when checking engine oil level.

1. Park machine safely. (See Parking Safely in the SAFETY section.)


IMPORTANT: Avoid damage! Dirt and contamination can enter engine when checking oil level. Clean area around dipstick before loosening or removing.

2. Clean area around dipstick to prevent debris from falling into crankcase.

MX50272

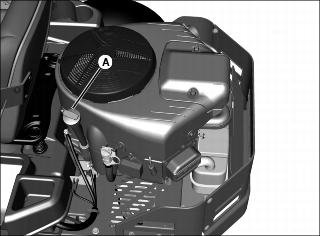

3. Remove dipstick (A). Wipe with clean cloth.

4. Install and tighten dipstick.

5. Remove dipstick.

6. Check oil level on dipstick. Oil must be between ADD and FULL marks.

7. If oil level is low, add oil to bring oil level no higher than FULL mark on dipstick. Do not overfill.

8. Install and tighten dipstick.

Changing Engine Oil and Filter


IMPORTANT: Avoid damage! Operating in extreme conditions may require more frequent service intervals: • Engine components may become dirty or plugged when operating in extreme heat, dust or other severe conditions. • Engine oil can degrade if machine is operated constantly at slow or low engine speeds or for frequent short periods of time.

1. Run engine to warm oil.

2. Park machine safely on level surface. (See Parking Safely in the SAFETY section.)


IMPORTANT: Avoid damage! Dirt and contamination can enter engine when checking oil level. Clean area around dipstick before loosening or removing.

MX50272

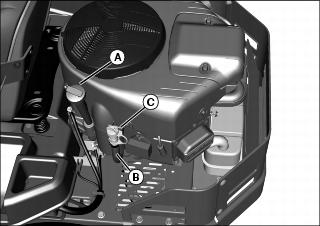

3. Clean area around dipstick (A) to prevent debris from falling into crankcase.

4. Disconnect oil drain hose (B) from the side of the engine.

5. Remove the oil drain cap (C). Carefully lower the quick oil drain into an approved container.

MX50273

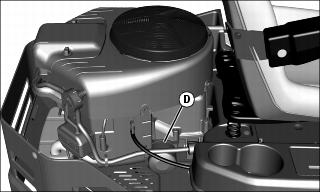

6. Wipe dirt from around oil filter (D). Place a drain pan under oil filter, and remove filter.

7. Wipe up any dripped oil from oil filter on engine pan.

8. Put a light coat of fresh, clean oil on the new filter gasket.

9. Install replacement oil filter by turning oil filter to the right (clockwise) until the rubber gasket contacts filter base. Tighten filter an additional one-half turn.

10. After oil has drained, install the drain cap (C) and attach drain hose assembly (A) to side of engine.

11. Add oil no higher than FULL mark on dipstick. Begin with approximately 1.6 L (1.75 qt). Do not overfill.

12. Tighten dipstick.

13. Start and run engine at idle to check for leaks. Stop engine. Fix any leaks before operating.

14. Check oil level. Add oil if necessary.

15. Wipe up any and all surfaces of any oil drippings.

Cleaning Air Intake Screen and Engine Fins

c CAUTION: Avoid injury! Compressed air can cause debris to fly a long distance.

• Clear work area of bystanders.

• Wear eye protection when using compressed air for cleaning purposes.

• Reduce compressed air pressure to 210 kPa (30 psi).


IMPORTANT: Avoid damage! An obstructed air intake screen can cause engine damage due to overheating. Keep air intake screen and other external surfaces of the engine, including cooling fins, clean at all times to allow adequate air intake.

1. Park machine safely. (See Parking Safely in the SAFETY Section.)

2. Clean air intake screen on top of engine and external surfaces with rag, brush, vacuum or compressed air.

Cleaning Engine Shroud


IMPORTANT: Avoid damage! An obstructed air intake screen can cause engine damage due to overheating. Keep air intake screen and other external surfaces of the engine, including cooling fins, clean at all times to allow adequate air intake.

c CAUTION: Avoid injury! Touching hot surfaces can burn skin. The engine, components, and fluids will be hot if the engine has been running. Allow the engine to cool before servicing or working near the engine and components.

1. Park machine safely. (See Parking Safely in the SAFETY Section.)

2. Clean air intake screen and external engine surfaces (see Cleaning Air Intake Screen and Engine Fins in ENGINE Section).

MX50273

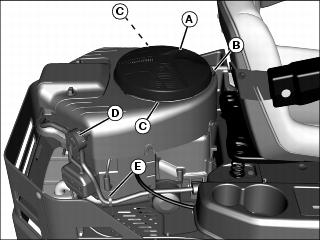

3. Locate rotating screen guard (A) at top of engine.

4. Remove screw (B) (if equipped) press in tabs (C) and lift off guard (A).

5. Clean guard and flywheel cover of debris.


IMPORTANT: Avoid damage! Be careful to maintain position of fuel pump assembly (D), clips (E) for fuel line, and any other attached components when removing parts from side of engine.

MX51833

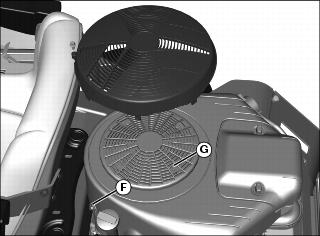

6. Remove five bolts (F) and engine shroud.

7. Remove four bolts (G) and rotating screen.

MX38389

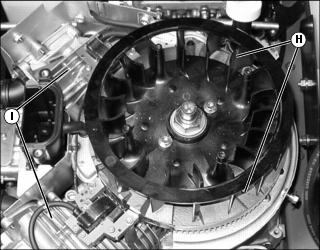

8. Clean debris from:

• Fan areas (H)

• Cylinder head cooling fins (I)

• Engine cooling fins

• Area between engine and frame

9. Install rotating screen with four bolts.


IMPORTANT: Avoid damage! Engine shroud must be assembled so that the slots in the shroud align with the ridge in the air intake and mating surfaces along sides of engine. Failure to assemble correctly will prevent the air filter from sealing and may cause engine damage.

10. Install shroud with hardware.

Checking and Cleaning Air Cleaner Element

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Let engine cool.


IMPORTANT: Avoid damage! To prevent engine damage, do not allow any foreign objects to fall into the carburetor air intake.

MX50272

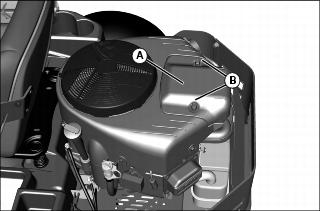

3. Clean dirt and debris from the air cleaner cover (A).

4. Loosen two knobs (B) and remove cover.


IMPORTANT: Avoid damage! Dirt and debris can enter the engine through a damaged filter element: • Do not wash paper element. • Do not attempt to clean paper element by tapping against another object. • Do not use pressurized air to clean element. • Replace element only if it is very dirty, damaged or the seal is cracked.

NOTE: During filter cartridge removal, any material or foreign object that enters the air intake must be removed before replacement of the cartridge.

MX51827

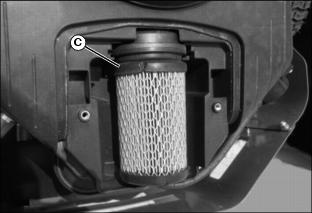

5. Lift out filter cartridge (C) and inspect it for damage.

6. Clean air cleaner housing carefully. Prevent any dirt from falling into carburetor.

7. Install cartridge. Make sure cartridge and seal are properly seated and sealing the carburetor air intake area.

8. Install air cleaner cover and tighten knobs. Do not overtighten.

Checking Spark Plug

1. Park machine safely (See Parking Safely in the SAFETY section).

MX51683

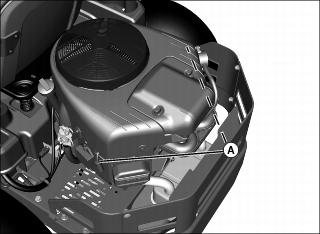

2. Disconnect spark plug wire (A) on each side of engine.

3. Remove each spark plug.

4. Clean spark plug carefully with a wire brush.

5. Inspect spark plug for:

• Cracked porcelain.

• Pitted or damaged electrodes.

• Other wear or damage.

NOTE: In Canada, replace spark plug with resistor plug only.

6. Replace spark plug(s) as necessary.

M85200

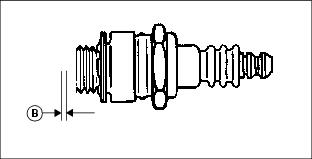

7. Check plug gap (B) with a wire feeler gauge. To change gap, move the outer electrode. Gap must be 0.75 mm (0.030 in.).

8. Install spark plugs and tighten to 20 N•m (180 lb-in.).

9. Connect spark plug wire(s).

Adjusting Carburetor

NOTE: Carburetor is calibrated by the engine manufacturer and is not adjustable.

If engine is operated at altitudes above 1006 m (3,300 ft), some carburetors may require a special high altitude main jet. See your authorized dealer.

If engine is hard to start or runs rough, check the TROUBLESHOOTING section of this manual.

Possible engine surging will occur at high throttle with transmission in “N” neutral and mower engagement lever disengaged. This is a normal condition due to the emission control system.

After performing the checks in the troubleshooting section and your engine is still not performing correctly, contact your authorized dealer.

Replacing Fuel Filter

c CAUTION: Avoid injury! Fuel vapors are explosive and flammable:

• Do not smoke while handling fuel.

• Keep fuel away from flames or sparks.

• Shut off engine before servicing.

• Cool engine before servicing.

• Work in a well-ventilated area.

• Clean up spilled fuel immediately.

NOTE: Change filter when fuel is low.

1. Park machine safely. (See Parking Safely in the SAFETY section).

2. Let engine cool.

3. Raise operator’s seat if required.

4. Put a drain pan under fuel filter.

MX51682

Picture Note: Standard twin cylinder shown.

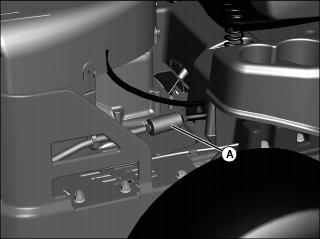

5. Slide hose clamps on both sides of fuel filter (A) away from fuel filter ends using pliers.

6. Disconnect hoses from filter.


IMPORTANT: Avoid damage! Incorrect installation of fuel filter may cause engine damage. Install the filter with the arrow pointing in the direction of fuel flow (towards the engine) for proper operation.

7. Connect hoses to new filter making sure the filter arrow is pointing in the direction of the fuel flow.

8. Install clamps and check for leaks.

Cleaning Engine Screen Guard

The twin cylinder engine incorporates a removable guard over the rotating flywheel cover at the top of the engine. The guard should be removed to check for and remove any debris daily in conjunction with checking engine oil level.

MX51833

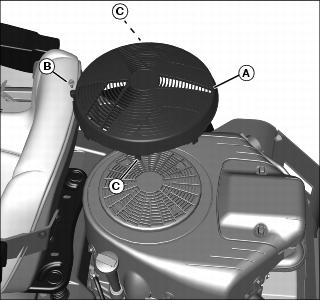

1. Locate rotating screen guard (A) at top of engine.

2. Remove screw (B), press in tabs (C) and lift off guard (A).

3. Clean guard and flywheel cover of debris.

4. Install guard after cleaning.
