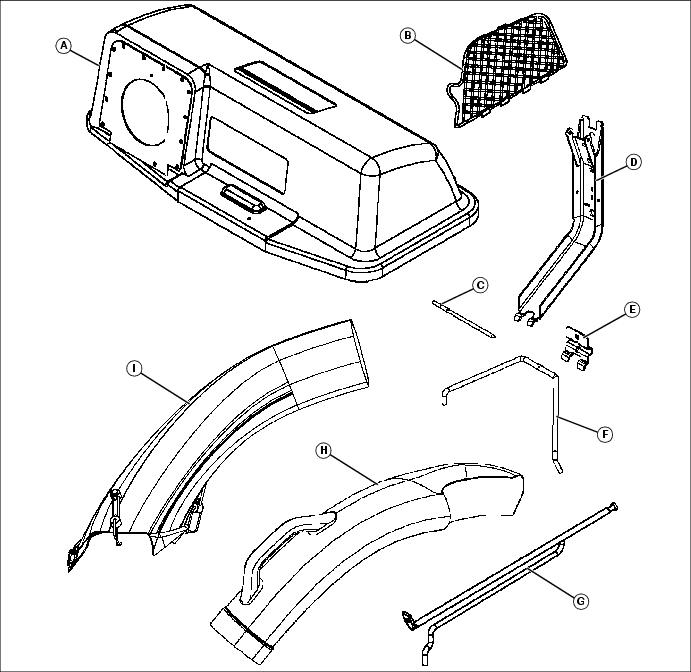

A

Hopper Top

1

G

Latch Support Rod

1

B

Hopper Screen

1

H

Upper Discharge Chute

1

C

Drilled Pin (In bag of parts)

1

I

Lower Discharge Chute (42 in. shown)

1

D

Mounting Post

1

Grass Bags (Right and Left) (Not Shown)

2

E

Cargo Mount Bracket (In bag of parts)

1

Tie Strap (In bag of parts) (Not Shown)

3

F

Bagger Support Rod

1

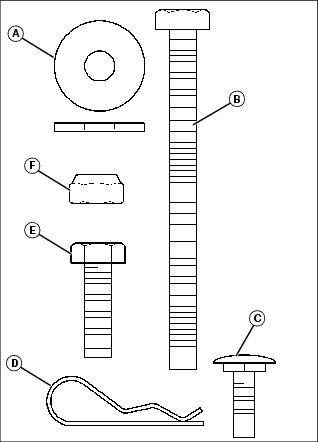

A

Flat Washer, 8.40 x 24 x 2mm

2

B

Hex Head Bolt, (M8 x 90)

1

C

Round Head Bolt, (M8 x 20)

1

D

Spring Locking Pin

1

E

Hex Head Bolt, (M8 x 25)

1

F

Lock Nut, M8

3
