Removing and Storing

Parking Safely

1. Stop machine on a level surface, not on a slope.

2. Disengage mower blades or any other attachments.

3. Lower attachments to the ground.

4. Lock the park brake.

5. Stop the engine.

6. Remove the key.

7. Wait for engine and all moving parts to stop before you leave the operator’s seat.

8. Close fuel shut-off valve, if your machine is equipped.

9. Disconnect the negative battery cable or remove the spark plug wire(s) (for gasoline engines) before servicing the machine.

Remove POWER FLOW

1. Disconnect chute strap from POWER FLOW bracket.

2. Open hopper cover to provide clearance for chute removal.

3. Pull chute off blower.

NOTE: Mower deck may need to be lowered to lift belt shield open.

4. Open plastic belt shield on mower. Remove belt from double sheave. Close plastic shield and snap shut.

5. Unlatch front bracket and swing outward.

6. Pull outward and toward rear to remove blower assembly.

7. Clean all parts of attachment, especially internal housing. Remove all grass build-up which can harden and affect operation. Store in a dry area.

Removing Chute

MX17894

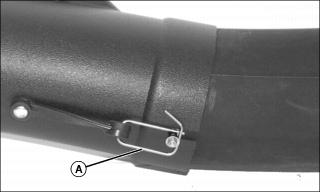

1. Unhook rubber strap latch (A) connecting upper chute to lower chute. Remove upper chute (B).

MX17893

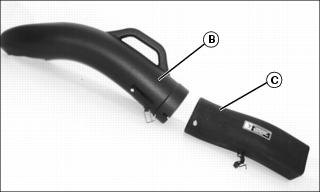

2. Separate upper chute (B) and lower chute (C).

Removing Bagger

1. Open hopper top and remove both bags.

2. Empty all debris from bags.

c CAUTION: Avoid injury! To prevent injury from thrown objects, inspect bags frequently for wear and deterioration. Check bags frequently and replace when necessary.

3. Inspect bags for wear and deterioration, replace when necessary.

4. Remove spring locking pin and drilled cargo pin.

5. Remove bagger support rod by lifting ends out of holes in rear cargo mounts.

6. Remove mounting post from rear hitch plate.

7. Install drilled cargo pin and spring locking pin to mounting post for storage.

c CAUTION: Avoid injury! When the attachment is removed, also remove any ballast that was added to the machine. Use only attachments and accessories recommended by the manufacturer.

8. Remove ballast.

9. Remove high lift mower blades and install regular blades.

Storing Safety

c CAUTION: Avoid injury! Fuel vapors are explosive and flammable. Engine exhaust fumes contain carbon monoxide and can cause serious illness or death: • Run the engine only long enough to move the machine to or from storage. • Machine fires and structure fires can occur if a machine is stored before allowing it to cool, or if debris is not removed from around the engine and muffler, or if stored near combustible materials. • Do not store vehicle with fuel in the tank inside a building where fumes may reach an open flame or spark. • Allow the engine to cool before storing the machine in any enclosure.

Storing Attachment

NOTE: Some of the following steps may not apply to your attachment.

1. Remove any grass clippings from MCS or bagger attachment.

2. Remove attachment from machine.

3. Clean attachment and driveline, if equipped, with water pressure from a hose.

4. Remove any shields if needed to clean out all debris.

5. Repair or replace worn, bent, or damaged parts. Tighten loose hardware.

6. Apply paint to painted surfaces where needed to prevent rust.

7. Apply thin coat of grease to blades or tines to prevent rust.

8. Lubricate any pivot points with engine oil to prevent rust.

9. Lubricate any grease points.

10. If storing attachment outdoors, block up attachment if possible and place a waterproof cover over it.
