Service Steering & Brakes

1. Inflate tires to correct pressures.

MX12874

2. Stop machine on a maximum 17° slope.

3. Lock park brake.

· A properly adjusted park brake must prevent the drive wheels from turning.

· If the drive wheels turn, a brake adjustment will be necessary.

1. Park machine safely. (Refer to Parking Safely in the SAFETY section.)

2. Unlock park brake.

NOTE: Repeat procedure for both sides of machine.

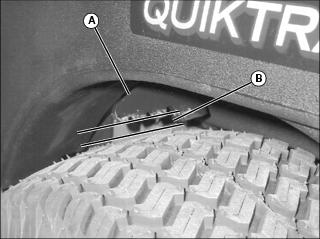

MX21508

3. Loosen two cap screws that retain brake pawl (A).

4. Adjust distance (B) between pawl and tire to 9.5-13 mm (3/8-1/2 in.).

5. Tighten brake pawl retaining cap screws.

6. Test park brake. Adjust again, if required.

7. Release park brake and operate machine to verify tires do not hit brake pawls in the released position.
