Service Lubrication

Grease


IMPORTANT: Avoid damage! Use recommended John Deere greases to avoid component failure and premature wear. The recommended John Deere greases are effective within an average air temperature range of -29 to 135 degrees C (-20 to 275 degrees F). If operating outside that temperature range, contact your Servicing dealer for a special-use grease.

The following greases are preferred:

· John Deere Multi-Purpose SD Polyurea Grease

· John Deere Multi-Purpose HD Lithium Complex Grease

· John Deere Moly High Temperature EP Grease

If not using any of the preferred greases, be sure to use a general all-purpose grease with an NLGI grade No.2 rating.

Wet or high speed conditions may require use of a special-use grease. Contact your Servicing dealer for information.

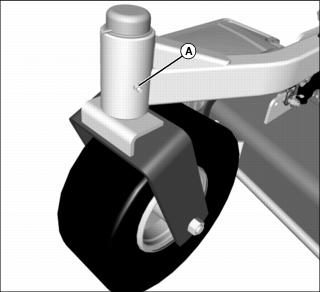

Lubricate Front Caster Spindles and Wheels

c CAUTION: Avoid injury! Hands, fingers or clothing can become entangled in rotating parts. Stop engine and wait for all moving parts to stop before servicing machine.

MX18685

· Lubricate two spindle lubrication fittings (A).

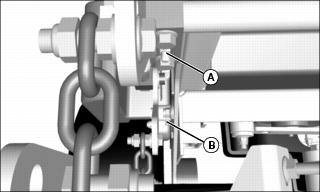

Lubricate Deck Lift Pivot Points

MX18686

· Lubricate two front deck lift pivot lubrication fittings (A) and two rear deck lift pivot lubrication fittings (B).

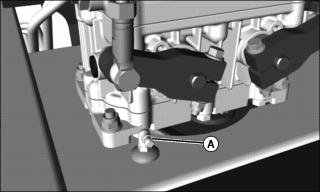

Lubricate Pump Idler Pivot

MX18687

· Lubricate one pump idler pivot lubrication fitting (A).

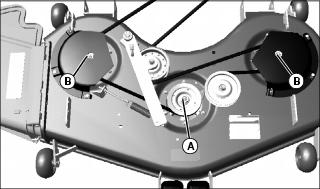

Lubricate Mower Deck Spindles

NOTE: Removal of belt shields is not necessary to lubricate the spindles.

· Lubricate three mower deck spindle lubrication fittings.

MX21593

· One mower deck spindle lubrication fitting (A) is located in the center of the deck.

· Two mower deck spindle lubrication fittings (B) are located on either side of the mower deck.

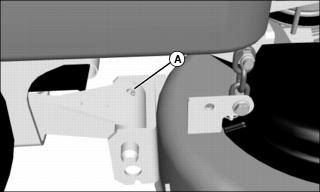

Lubricate Mower Deck Push Arms

MX18690

· A push arm assembly lubrication fitting (A) is located on each side of the machine.

· Lubricate two push arm lubrication fittings.
