Service Miscellaneous

Use regular grade unleaded fuel with an octane rating of 87 octane or higher. Fuel blends containing up to 10% ethanol or up to 15% MTBE reformulated fuel are acceptable. Do not use fuel or additives containing methanol as engine damage can occur.

Always use fresh, clean fuel that is purchased in a quantity that can be used within approximately 30 days, or add fuel stabilizer.

Fuel is blended to give best seasonal performance. To avoid engine performance problems such as hard starting or vapor lock, use in-season fuel. Use fuel during warm weather that was purchased during that season, and use fuel during cold weather that was purchased during that season.

Fuel can become stale in machines with engines that are used seasonally or infrequently during a season. Stale fuel can produce varnish and plug carburetor components which can affect engine performance.

Keep fuel storage container tightly covered and in a cool area out of direct sunlight. Fuel can break down and degrade if not sealed properly or exposed to sun and heat.

Condensation may collect in the fuel tank because of a variety of operating or environmental conditions and, over time, may affect your machine’s operation. Fill fuel tank at the end of daily use and store fuel in plastic containers to reduce condensation.

For best year-round performance and fuel-handling, add stabilizer to fuel immediately after fuel purchase. Such practice helps prevent engine performance problems and allows fuel storage in the machine all year without draining.

Filling Fuel Tank


c CAUTION: Avoid injury! Fuel vapors are explosive and flammable: • Shut engine off before filling fuel tank. • Allow engine to cool before refueling. • Do not smoke while handling fuel. • Keep fuel away from flames or sparks. • Fill fuel tank outdoors or in well ventilated area. • Clean up spilled fuel immediately. • Use clean approved non-metal container to prevent static electric discharge. • Use clean approved plastic funnel without screen or filter to prevent static electric discharge.


IMPORTANT: Avoid damage! Dirt and water in fuel can cause engine damage: • Clean dirt and debris from the fuel tank opening. • Use clean, fresh, stabilized fuel. • Fill the fuel tank at the end of each day’s operation to keep condensation out of the fuel tank. • Use a non-metallic funnel with a plastic mesh strainer when filling the fuel tank or container.

Fill fuel tank at the end of each day’s operation to prevent condensation and freezing during cold weather.

4. Remove fuel tank cap slowly to allow any pressure built up in tank to escape.

Checking Tire Pressure


c CAUTION: Avoid injury! Explosive separation of tire and rim parts is possible when they are serviced incorrectly: • Do not attempt to mount a tire without the proper equipment and experience to perform the job. • Make sure all tires are inflated to the recommended pressure, especially when operating on slopes. Low pressure can cause machine to become unstable on slopes. • Do not weld or heat a wheel and tire assembly. Heat can cause an increase in air pressure resulting in an explosion. Welding can structurally weaken or deform the wheel. • Do not stand in front or over the tire assembly when inflating. Use a clip-on chuck and extension hose long enough to allow you to stand to one side.

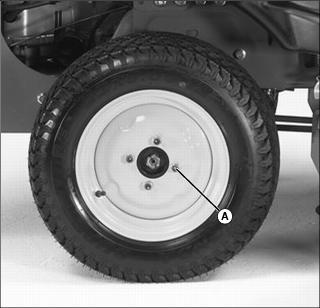

Removing and Installing Rear Drive Wheels


c CAUTION: Avoid injury! The machine can fall or slip from an unsafe lifting device or supports. • Use a safe lifting device rated for the load to be lifted. • Lower machine onto jack stands or other stable supports and block wheels before servicing.

Removing:

Installing:

Cleaning Plastic Surfaces


IMPORTANT: Avoid damage! Improper care of machine plastic surfaces can damage that surface: • Do not wipe plastic surfaces when they are dry. Dry wiping will result in minor surface scratches. • Use a soft, clean cloth (bath towel, diaper, automotive mitt). • Do not use abrasive materials, such as polishing compounds, on plastic surfaces.

Cleaning and Repairing Metal Surfaces

Cleaning:

Follow automotive practices to care for your vehicle painted metal surfaces. Use a high-quality automotive wax regularly to maintain the factory look of your vehicle’s painted surfaces.

Repairing Minor Scratches (surface scratch):

Repairing Deep Scratches (bare metal or primer showing):

2. Use paint stick with factory-matched colors available from your authorized dealer to fill scratches. Follow directions included on paint stick for use and for drying.

3. Smooth out surface using an automotive polishing compound. Do not use power buffer.
