Safety Labels

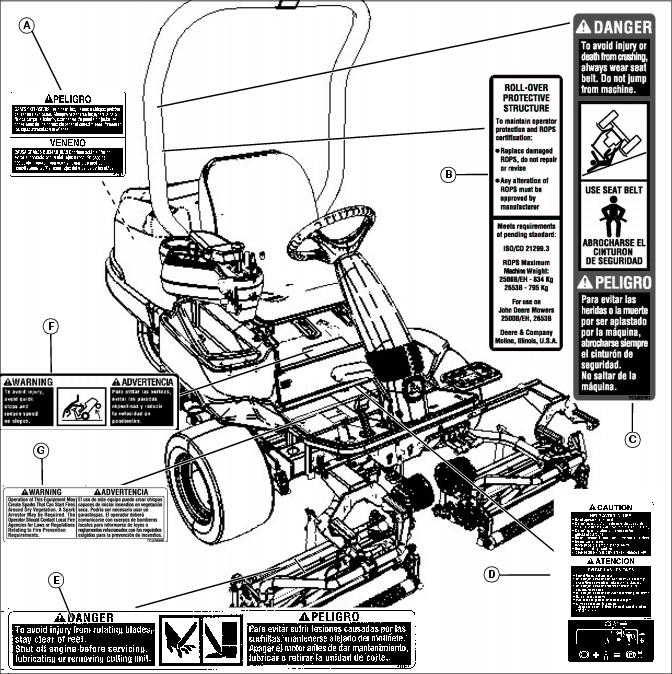

Safety Label Location
Picture Note: Use label number listed in table below to locate complete text of safety label message following this illustration.
B - ROLL-OVER PROTECTIVE STRUCTURE TCU22765
Understanding The Machine Safety Labels
The machine safety labels shown in this section are placed in important areas on your machine to draw attention to potential safety hazards.
On your machine safety labels, the words DANGER, WARNING, and CAUTION are used with this safety-alert symbol. DANGER identifies the most serious hazards.
The operator’s manual also explains any potential safety hazards whenever necessary in special safety messages that are identified with the word, CAUTION, and the safety-alert symbol.
Roll-Over Protective Structure
To maintain operator protection and ROPS certification:
• Replace damaged ROPS, do not repair or revise
• Any alteration of ROPS must be approved by manufacturer
Meets requirements of pending standard:
• ROPS Maximum Machine Weight: 2500B/EH - 834Kg, 2653B - 795Kg
• For use on John Deere Mowers 2500B/EH, 2653B
• Deere & Company Moline, Illinois, U.S.A.
DANGER TCU22761
Use Seat Belt
• To avoid injury from crushing, always wear seat belt. Do not jump from machine.
Warning
• To avoid injury, avoid quick stops and reduce speed on slopes.
WARNING TCU26800
SPARK ARRESTOR
Operation of this equipment may create sparks that can start fires around dry vegetation. A spark arrestor may be required. the operator should contact local fire agencies for laws or regulations relating to fire prevention requirements.
Danger
• To avoid injury from rotating blades, stay clear of reel.
• Shut off engine before servicing, lubricating or removing cutting unit.
CAUTION
HELP AVOID INJURY
• Do not operate the machine without guards, shields and safety devices in place and working.
• Do not operate when children and/or others are around.
• Do not operate the machine unless you are trained.
• Keep people a safe distance away.
Warning

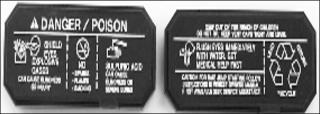

DANGER-POISON M93700
SHIELD EYES. EXPLOSIVE GASES can cause blindness or injury.
NO
SULFURIC ACID can cause blindness or severe burns.
Keep out of reach of children. Do not tip. Keep vent caps tight and level.
FLUSH EYES IMMEDIATELY WITH WATER. GET MEDICAL HELP FAST.
Caution: For safe jump starting follow instructions in vehicle owners manual. If not available seek service assistance.
Emission Control System Certification Label
c CAUTION: Avoid injury! Statutes providing severe penalties for tampering with emissions controls may apply at the user’s location.
|
The emissions warranty described in the warranty section applies only to those engines marketed by John Deere that have been certified by the United States Environmental Protection Agency (EPA) and/or California Air Resources Board (CARB); and used in the United States in non-road mobile (self-propelled or portable/transportable1) equipment. The presence of an emissions label like the one shown signifies that the engine has been certified with the EPA and/or CARB. The EPA and CARB warranties only apply to new engines having the certification label affixed to the engine and sold as stated above in the geographic areas governed by the regulating agencies.
NOTE: The hp/kW rating on the engine emissions certification label specifies the gross engine hp/kW, which is flywheel power without fan. In most applications this will not be the same rating as the advertised vehicle hp/kW rating.
Emission Control System Certification Label
NOTE: Tampering with emission controls and components by unauthorized personnel may result in severe fines or penalties. Emission controls and components can only be adjusted by EPA and/or CARB authorized service centers. Contact your John Deere Commercial and Consumer Equipment Retailer concerning emission controls and component questions.
The presence of an emissions label signifies that the engine has been certified with the United States Environmental Protection Agency (EPA) and/or California Air Resources Board (CARB).
The emissions warranty applies only to those engines marketed by John Deere that have been certified by the EPA and/or CARB; and used in the United States and Canada in off-road mobile equipment.
Emission Compliance Period
If your engine has the emission compliance category listed on the emission control system certification or air index label, this indicates the number of operating hours for which the engine has been certified to meet EPA and/or CARB emission requirements. The following table provides the engine compliance period in hours associated with the category found on the certification label.
Canadian Electromagnetic Compatibility (EMC) Compliance
This spark ignition system complies with Canadian ICES-002.
Certification
Your product has been tested and evaluated by the manufacturer and conforms with American National Standard B-71.4, Safety Specifications for commercial turf care equipment.
