Operating Controls
Operating Controls

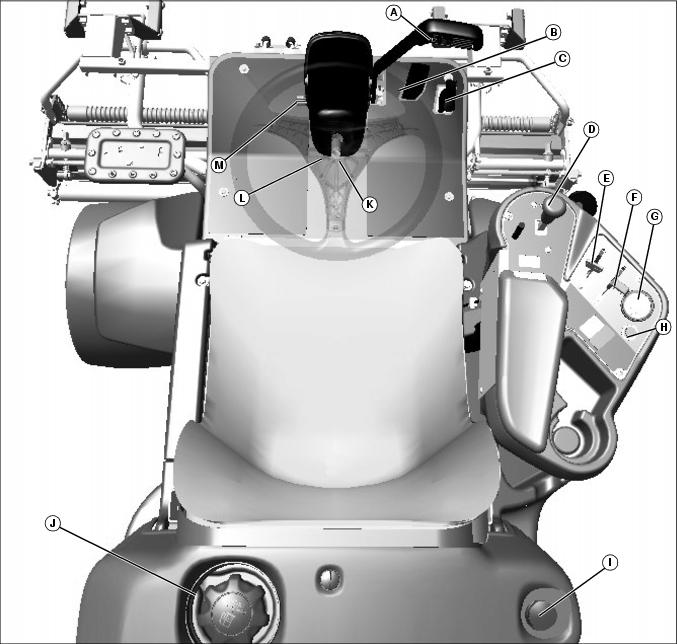

MX41155
Key
|
Description
|
Key
|
Description
|
A
|
Park Brake Pedal/Emergency Brake
|
H
|
Key Switch
|
B
|
Reverse Travel Pedal
|
I
|
Fuel Gauge
|
C
|
Forward Travel Pedal
|
J
|
Fuel Cap
|
D
|
Raise-Lower Lever
|
K
|
Park Brake Lock
|
E
|
Mow-Transport Lever
|
L
|
Choke Knob (Gas Model)
|
F
|
Throttle Control Lever
|
M
|
Tilt Steering Adjustment Lever
|
G
|
Indicator Light/Hourmeter Module
|
|
|
MX20450

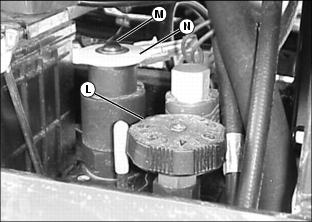

Picture Note: 2500B Model Shown
MX20429
Picture Note: 2500E Hybrid Model Shown
Key
|
Description
|
L
|
Speed Control Knob
|
M
|
Release Button
|
N
|
Forward-Reverse Knob
|
O
|
Mow-Backlap Switch
|
P
|
Forward-Reverse Switch
|
|
