Service Lubrication

Grease

IMPORTANT: Avoid damage! Use recommended John Deere greases to avoid component failure and premature wear.

The recommended John Deere greases are effective within an average air temperature range of -29 to 135 degrees C (-20 to 275 degrees F).

If operating outside that temperature range, contact your Servicing dealer for a special-use grease.


The following greases are preferred:

John Deere Multi-Purpose SD Polyurea Grease

John Deere Multi-Purpose HD Lithium Complex Grease

If not using any of the preferred greases, be sure to use a general all-purpose grease with an NLGI grade No.2 rating.

Wet or high speed conditions may require use of a special-use grease. Contact your Servicing dealer for information.

The following lubricant is preferred:

SUPER LUBE lubricant.1

Lubricating Machine Grease Fittings

Extremely Wet and Muddy Conditions - Lubricate machine grease fittings (A) every 10 hours of operation or on a daily basis.
All Other Conditions - Lubricate machine grease fittings every 50 hours of operation.

MX46345


MX46798

Picture Note: Parts have been removed for better view.


MX46347

Picture Note: Clamp loosened and boot pulled back for better view.

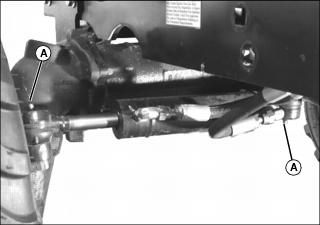

A - Power Steering Cylinder

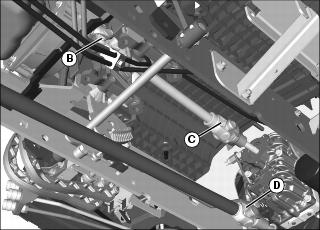

B - Main Driveline - Front

C - Main Driveline - Rear

D - MFWD Driveline - Rear

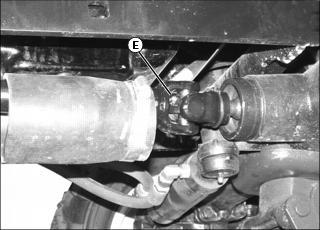

E - MFWD Driveline - Front

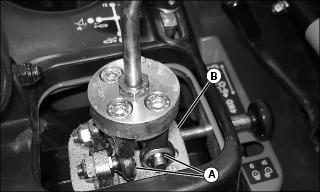

Lubricating Hydraulic Selective Control Valve (SCV) Linkage


MX17437

Picture Note: Shown with rubber boot removed.

Lubricate SCV ball joints (A) and SCV lock lever (B) with SUPER LUBE lubricant.

Lubricating 3-Point Hitch


MX46356

Lubricate ball joints (A) with SUPER LUBE lubricant.

1

SUPER LUBE is a registered trademark of Synco Chemical Corp.
