Service Lubrication


IMPORTANT: Avoid damage! Use recommended John Deere greases to avoid component failure and premature wear. The recommended John Deere greases are effective within an average air temperature range of -29 to 135 degrees C (-20 to 275 degrees F). If operating outside that temperature range, contact your Servicing dealer for a special-use grease.

John Deere Multi-Purpose SD Polyurea Grease

John Deere Multi-Purpose HD Lithium Complex Grease

If not using any of the preferred greases, be sure to use a general all-purpose grease with an NLGI grade No.2 rating.

Wet or high speed conditions may require use of a special-use grease. Contact your Servicing dealer for information.

SUPER LUBE lubricant.¹

Extremely Wet and Muddy Conditions - Lubricate machine grease fittings every 10 hours of operation or on a daily basis

All Other Conditions - Lubricate machine grease fittings every 50 hours of operation

MX36777

MX36778

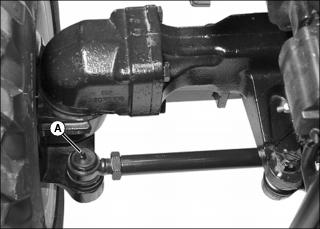

A - Left Tie Rod End

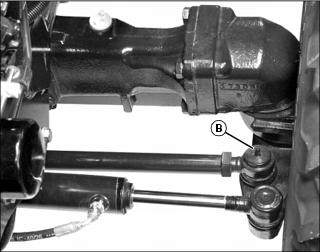

B - Right Tie Rod End

MX25815

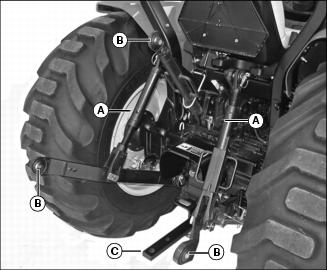

Lubricate lift link grease fittings (A) with recommended grease or an equivalent.

Lubricate ball joints (B) and draw bar (C) with SUPER LUBE lubricant.

SUPER LUBE is a registered trademark of Synco Chemical Corp.
