Operating Controls

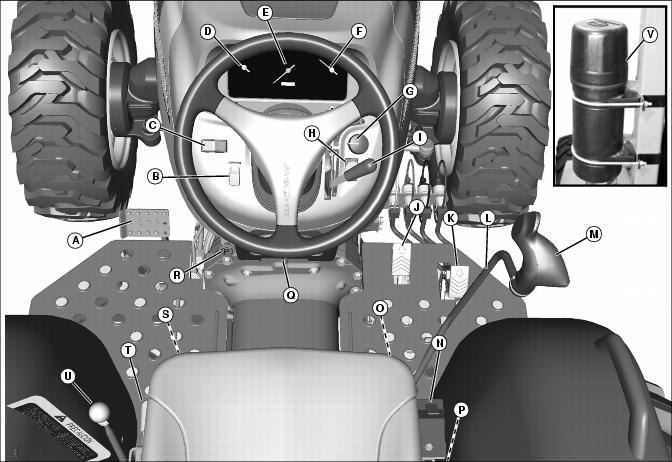

Operator Station Controls

MX46179, MX27165

A - Brake Pedal

B - Turn Signal Switch

C - Cruise Control Switch

D - Fuel Gauge

E - Tachometer

F - Engine Coolant Temperature Gauge

G - Light Switch

H - PTO Engagement Knob

I - Hand Throttle Lever

J - Forward Travel Pedal

K - Reverse Travel Pedal

L - Dual Selective Control Valve (SCV) Lever

M - Dual SCV Lever with Optional I Rear Outlet SCV Control Switch

N - I Rear Outlet Activation Switch (Optional)

O - Dual SCV Lock Lever

P - Rockshaft Control Lever

Q - Ignition Key Switch

R - Park Brake Lock Knob

S - Differential Lock Pedal

T - Mechanical Front Wheel Drive (MFWD) Lever

U - Transmission Range Shift Lever

V - Operator Manual Holder (on ROPS)

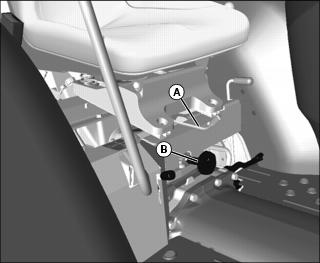

Floor Panel Controls

MX39693

A - Seat Adjust Lever

B - Rockshaft Rate-of-Drop Control Knob
