Specifications

260 Backhoe

M64109

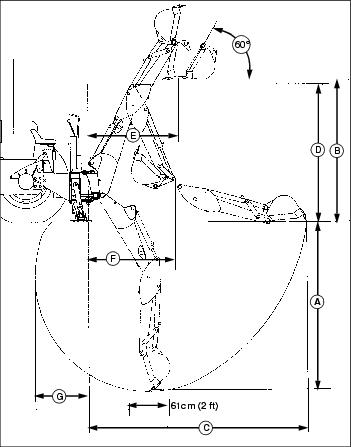

NOTE: Dimensions are given for backhoe with boom pivot pin 30cm (12 in.) above ground.

Digging Depth (A) (see note below) 1,89 m (74.5 in.)

Swing Arc 150 degrees

Weight with 16 in. Bucket 277 kg (610 lb)

Loading Height (bucket at 60) (B) 1,5 m (60 in.)

Reach From Center Line of Swing Pivot (C) 2,64 m (104 in.)

Transport Height (D) 1,7 m (66 in.)

Bucket Rotation 180 degrees

Loading Reach (bucket at 60) (E) 84 cm (33 in.)

Transport Overhang (F) 94 cm (37 in.)

Undercut (G) 43 cm (17 in.)

Stabilizers Spread Width (Raised) 1,47 m (58 in.)

Stabilizers Spread Width (Lowered) 1,88 m (74 in.)

Boom Lift Capacity (see note below) 129 kg (285 lb)

SAE Dipperstick Digging Force 5,28 kN (1187 lb)

SAE Bucket Digging Force 9,1 kN (2036 lb)

Digging Depth: 61cm (24 in.) flat bottom.

Boom Lift Capacity: Dipper arm and boom extended, lifting with boom cylinder only, weight attached at bucket pivot, bucket pivot 91cm (36 in.) above ground.

Buckets

Bucket Width	20 cm (8 in.)	30 cm (12 in.)	41 cm (16 in.)
SAE Struck Capacity	0.011 m3 (0.42 ft3)	0.019 m3 (0.66 ft3)	0.025 m3 (0.90 ft3)
Heaped Capacity	0.013 m3 (0.46 ft3)	0.022 m3 (0.76 ft3)	0.030 m3 (1.06 ft3)

(Specifications and design subject to change without notice.)
