Service Lubrication

Grease

The following greases are preferred:

• John Deere Multi-Purpose SD Polyurea Grease

• John Deere Multi-Purpose HD Lithium Complex Grease

If not using any of the preferred greases, be sure to use a general all-purpose grease with an NLGI grade No.2 rating.

Wet or high speed conditions may require use of a special-use grease. Contact your Servicing dealer for information.

Lubricating Rear Steering Pivot (4WS Models)

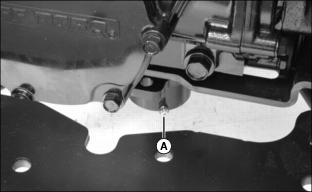

MX15404

Lubricate joint (A).

MX15405

Lubricate rear wheel pivot (B) on both ends of rear axle.

Lubricating Steering Cylinder Ball Joints (2WD Models)

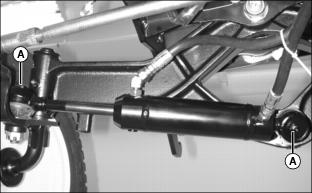

MX15409

Picture Note: 4WS model shown.

Lubricate ball joints (A) at each end of the steering cylinder.

Lubricating Front Axle (2WD Models)

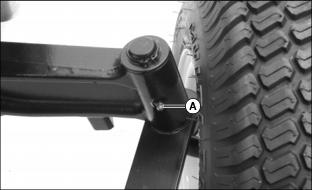

MX15406

A - Left King Pin

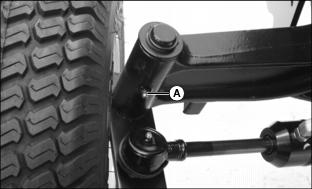

MX15407

A - Right King Pin

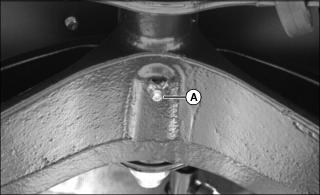

MX15408

A - Axle Center Pivot

Lubricate Drive Shaft (2WD Models)

MX35901

Picture Note: Showing view under fuel tank.

• Lubricate grease fitting (A) on the engine drive shaft universal joint.

Lubricating Machine Grease Fittings (4WD Models)

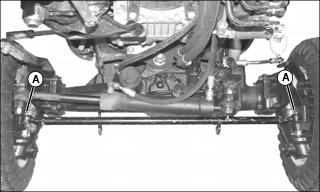

MX39548

• Lubricate grease fittings at both tie rod ends (A).

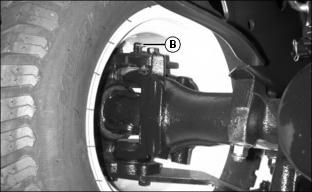

MX39549

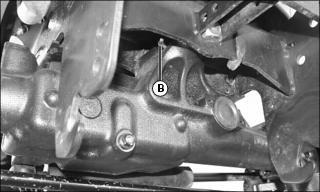

• Lubricate grease fittings at the front axle center pivot (B).

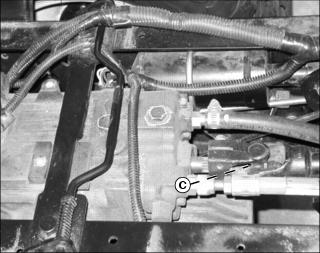

MX35901

Picture Note: Showing view under fuel tank.

• Lubricate grease fitting (C) on the engine drive shaft universal joint.
