Operating Controls

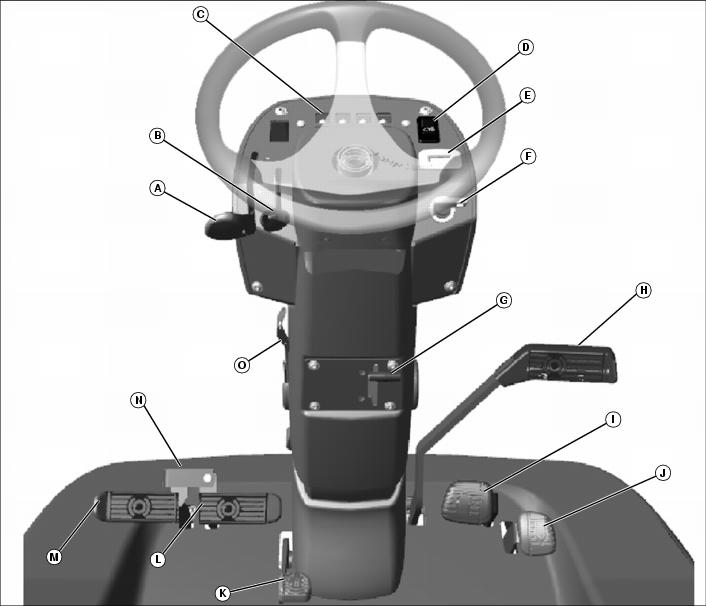

Operator Controls

MX24763

A - Throttle Lever

B - Choke Lever (Model 1420 Only)

C - Indicator Lamps

D - Work Lamp Switch

E - Work Lamp Switch

F - Key Switch

G - Park Brake Lock Lever

H - Park Brake Pedal

I - Forward Pedal

J - Reverse Pedal

K - Traction Assist Pedal

L - Right Turn Brake Pedal

M - Left Turn Brake Pedal

N - Turn Brake Pedal Lock (1545 and 1565 Road Homologation Only)

O - Steering Column Tilt Lever Lock

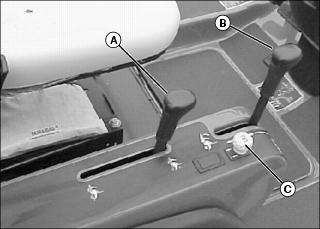

MX18961

A - 4WD Control Lever (1420, 1435, 1445)

B - Attachment Lift Lever

C - PTO Knob

MX17959

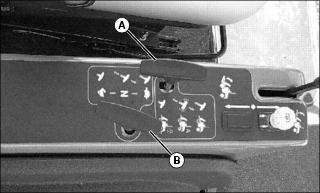

A - 4WD Control Lever (1545 and 1565)

B - Two-Speed Transaxle Shift Lever (1545 and 1565)

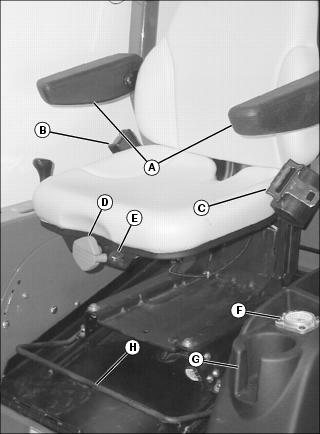

Deluxe Suspension Seat

MX18710

A - Folding Armrests

B - Seat Belt Latch

C - Seat Belt Buckle

D - Seat Spring Adjustment Knob

E - Seat Spring Weight Indicator

F - Fuel Gauge

G - Cup Holder

H - Seat Adjustment Lever

MX4478

A - Seat Height Adjustment Lever

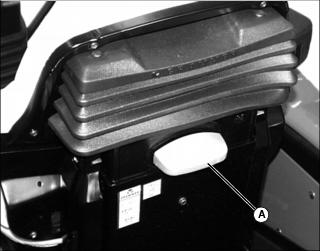

Comfort Adjust Suspension Seat

MX4478

A - Seat Suspension Adjustment Knob

B - Lumbar Support Knob

C - Seat Adjustment Lever

D - Seat Back Adjustment Knob

E - Weight Gauge

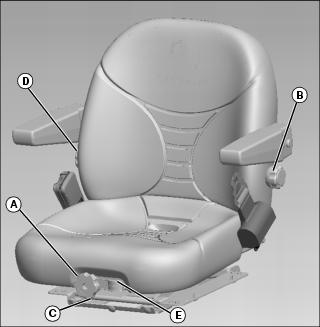

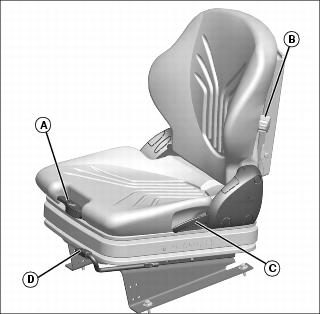

Air Ride Suspension Seat

MX41709

A - Seat Suspension Adjustment Knob

B - Lumbar Support Knob

C - Seat Back Adjustment Lever

D - Seat Adjustment Lever
