Attach Harness Connectors

1.
   N100787-UN-14NOV12


   N100788-UN-14NOV12

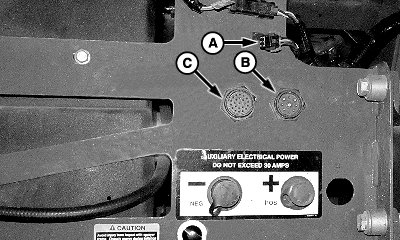

   A - CAN Harness Connector

   B - 9 Pin Connector

   C - 23 Pin Connector

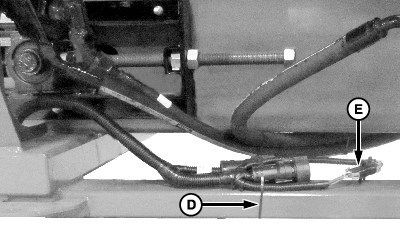

   D - Tie Band

   E - CAN Harness

   Locate harness connection points (A, B, and C).

---




2. Remove CAN terminator from CAN harness connector.

3. Remove tie band (D).

4. Disconnect CAN harness (E).

5.
   N100789-UN-14NOV12

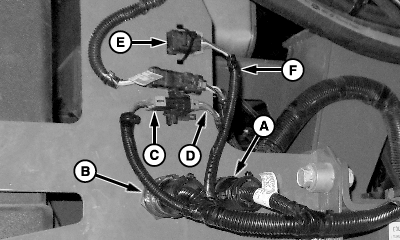

   A - 9 Pin Connector

   B - 23 Pin Connector

   C - CAN Harness Connection

   D - Machine Harness Connection

   E - CAN Terminator

   F - Spreader CAN Harness Connection

   Connect 9 and 23 pin connectors (A and B) to machine.

---




6. Connect CAN harness (C) to machine harness (D).

7. Install previously removed CAN terminator (E) to spreader CAN harness (F).

8. Retain CAN terminator as shown and any loose harness with tie bands to prevent damage.
