Install Mirrors and Mirror Brackets

1.

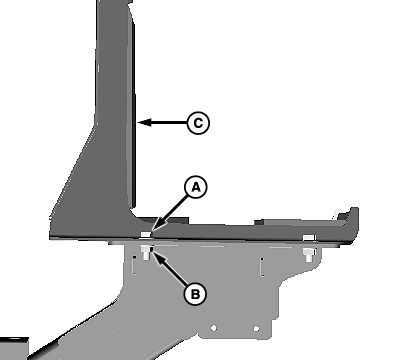

   N101122-UN-14NOV12

   A - Cap Screw, 4 Used

   B - Nut, 4 Used

   C - Boom Cradle

   Remove and retain cap screws (A), nuts (B) and boom cradle (C). Repeat for opposite side.

---




2.

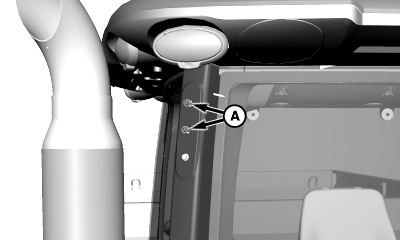

   N104339-UN-10JUN13

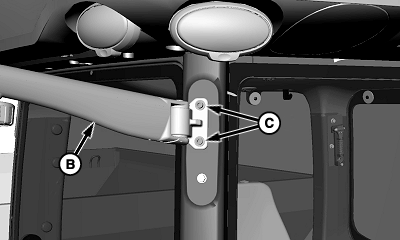

   N104340-UN-10JUN13

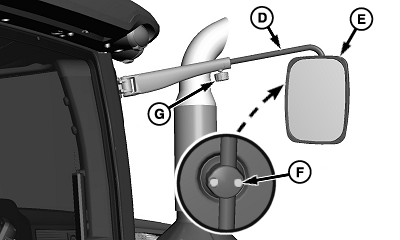

   N104341-UN-10JUN13

   A - Cap Screw

   B - Mirror Arm

   C - Socket Head Screw and Washer, 2 used

   D - Mirror Arm Extension

   E - Mirror

   F - Screw, 2 used

   G - Knob

   Remove and retain cap screws (A).

---




3. Install mirror arm (B) as shown. Retain with supplied socket head screws and washers (C).

4. Install mirror arm extension (D) to mirror arm.

5. Install mirror (E) to mirror arm extension.

6. Adjust mirror for desired visibility.

7. Tighten screws (F) and knob (G) to retain mirror in desired position.

8.

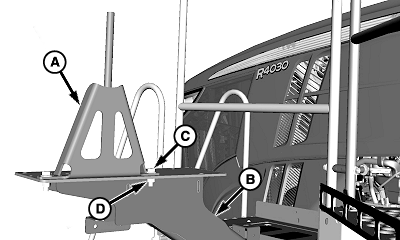

   N104337-UN-10JUN13

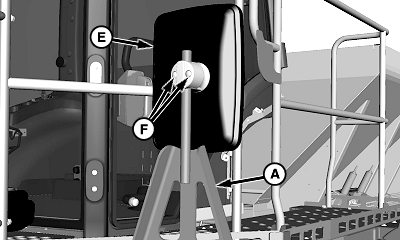

   N104338-UN-10JUN13

   A - Left-Hand Mirror Bracket

   B - Boom Support

   C - Cap Screw, 2 used

   D - Nut, 2 used

   E - Mirror

   F - Screws

   Install left-hand mirror bracket (A) to boom support (B) using previously removed cap screws (C) and nuts (D).

---




9. Install left-hand mirror (E).

10. Adjust mirror for desired visibility.

11. Tighten screws (F) to retain mirror in desired position.
