Lubricate Idler Shaft Bearings and Adjustment Screws—Weekly

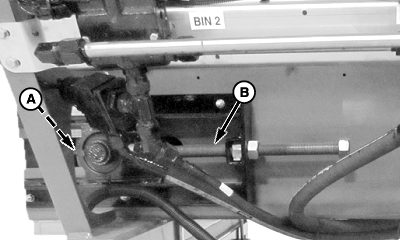

N101312-UN-14MAY13

Left-Hand Side

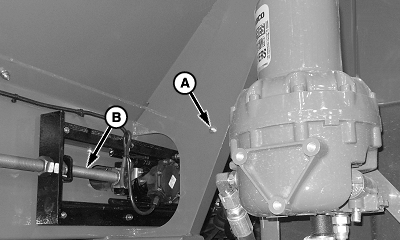

N103536-UN-26APR13

Right-Hand Side

A - Idler Bearing Grease Fitting

B - Idler Adjusting Screws

Lubricate front idler bearing (A) and adjusting screws (B) using John Deere SD Poly Urea grease. Use three pumps of grease at fitting (A). Hand grease threads (B).
