Check Gear Case Oil—Monthly

1.

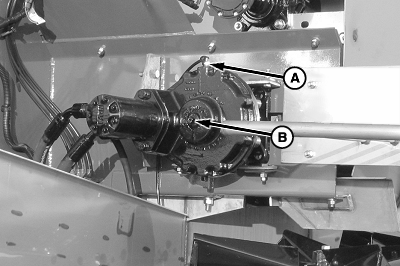

   N97231-UN-13APR12

   A - Fill Plug

   B - Fill Level Plug

   Park machine on flat level surface.

---




2. Remove fill plug (A).

3. Remove fill level plug (B).

4. Fill hub through fill plug hole, with recommended oil until fill level is reached. (See Gear Case Oil in Lubricant Specifications section.)

5. Reinstall plugs.
