Change Gear Case Oil—Annually

1.

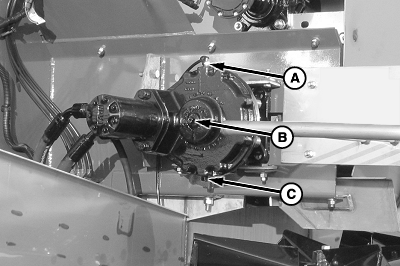

   N97284-UN-13APR12

   A - Fill Plug

   B - Fill Level Plug

   C - Drain Plug

   Park machine on flat level surface.

---




2. Remove drain plug (C) and drain hub oil. Reinstall plug.

3. Remove fill plug (A).

4. Remove fill level plug (B).

5. Fill hub through fill plug hole, with approximately 0.43 L (1 pt.) of recommended oil until fill level is reached. (See Gear Case Oil in Lubricant Specifications section.)

6. Reinstall plugs.
