Dimensions DN456

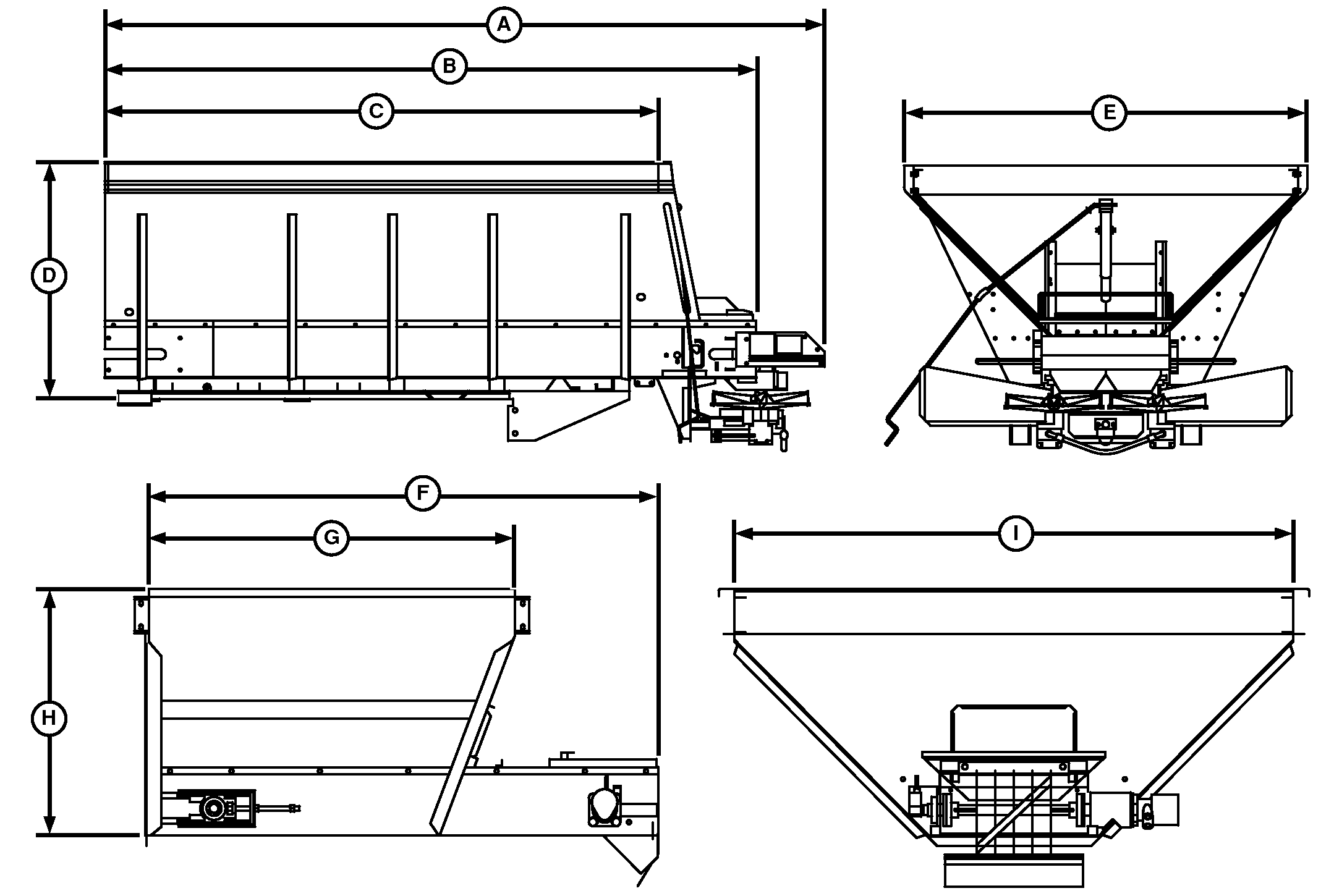

N95914-UN-27FEB12

DN456 and Second Product Bin

Unmounted Dimensions
Item	Description	Measurement
A	Overall Length	4370 mm (172 in.)
B	Bottom Length	3960 mm (156 in.)
C	Inside Length	3350 mm (132 in.)
D	Height	1448 mm (57 in.)
E	Width	2438 mm (96 in.)
F	Second Product Bin Bottom Length	2120 mm (83.5 in.)
G	Second Product Bin Inside Length	1524 mm (60 in.)
H	Second Product Bin Height	1016 mm (40 in.)
I	Second Product Bin Inside Width	2324 mm (91.5 in.)

N103602-UN-02MAY13

Dimensions1
Item	Description	Measurement
A	Cab Height with Air Springs, Inflated	3918 mm (154.25 in.)
A	Cab Height with Air Springs, Deflated	3810 mm (150.0 in.)
B	Underframe Clearance	1448 mm (57.0 in.)
C	Bottom Of Ladder	533 mm (21.0 in.)
D	Front Platform Height	2013 mm (79.25 in.)
E	Top Platform	2235 mm (88.0 in.)
F	Center of Rear Tire to Rear Spinner Guard	2051 mm (80.75 in.)
G	Wheelbase	4300 mm (169.3 in.)
H	Front of Machine-to-Rear of Rear Tire2	7353 mm (289.5 in.)
I	Front of Machine-to-Rearmost Boom Point	6120 mm (241 in.)
