Remove Rear Light Bar—If Equipped

NOTE:

N101375
N101375-UN-19DEC12

N101376
N101376-UN-19DEC12

N101377
N101377-UN-19DEC12

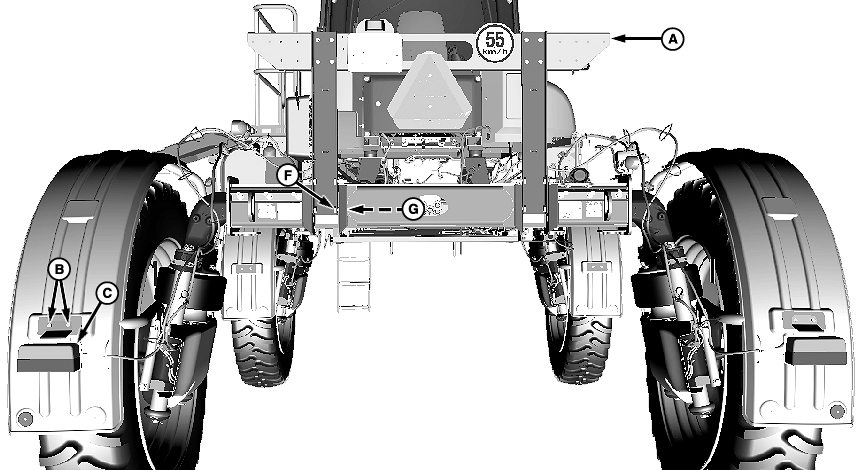

A - Light Bar Assembly

B - Cap Screw (4 used)

C - Fender Light

D - Harness Connections

E - Harness

F - Cap Screw (8 used)

G - Nut (8 used)

After removal retain all components of the light bar assembly (A) so they can be reinstalled if the machine is to be transported as bareback.

  1. Remove and retain cap screws (B) and fender lights (C).

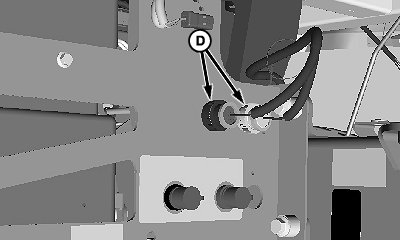

  2. Disconnect harness from connectors (D).

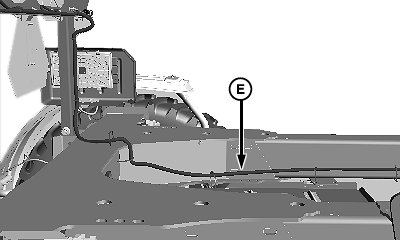

  3. Remove and retain harness (E) and lights.

  4. NOTE: Approximate weight of light bar assembly is 22.7 kg (50 lb.).

    Support light bar assembly with proper lifting device.

  5. Remove and retain cap screws (F) and nuts (G).

  6. Remove and retain light bar assembly.

CS12167,00002B0-19-20121219
