Interpret the Serial Number of Your Machine - 17 digits PIN

N103539-UN-30APR13

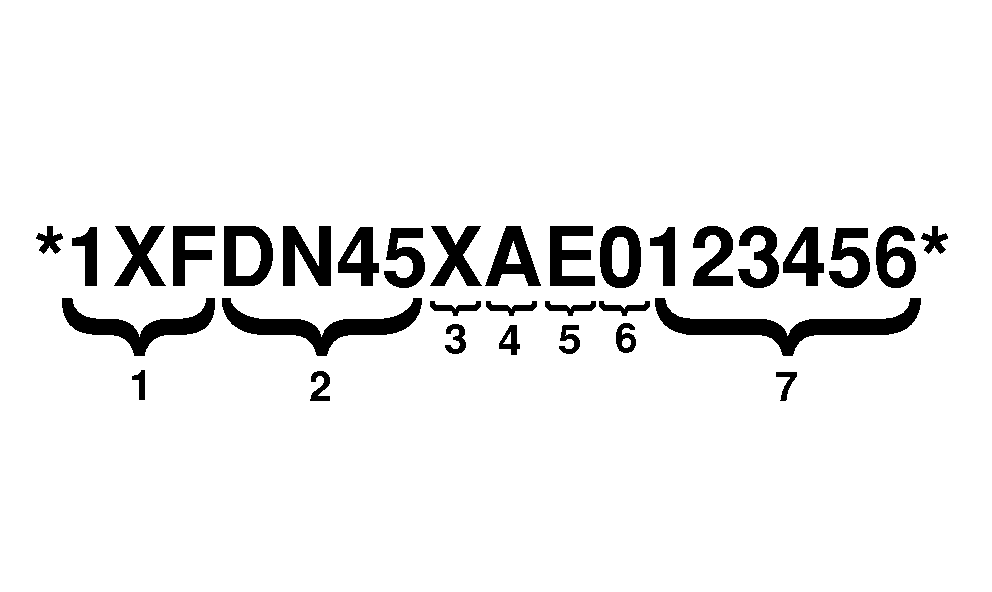

Interpreting the Serial Number of Your Machine
1	World Manufacturer Code	XF— Manufactured for John Deere Portfolio Extensions
2	Machine model
3	Model Identifier Suffix	Calculated using the other 16 digits
4	Check Letter	A, B, C, D... (According to JDS G139)
5	Year of manufacture	According to the Year of manufacture table
6	Additional Information
7	Sequential Manufacturing Serial Number	000001, 000127....

Each model has its own “sequential number”. The sequential number restarts at 000001 with the first machine produced each year.

Each model has its “Serial code of Machine”. This code will change whenever there is a significant change of the machine's configuration.
