Spinner Initial Adjustment

N98560
N98560-UN-21MAY12

N98561
N98561-UN-21MAY12

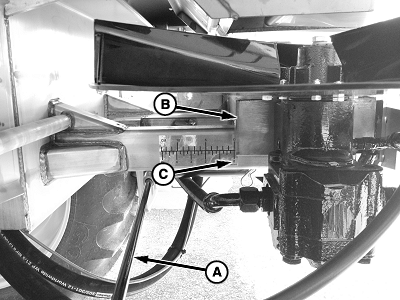

A - Spinner Crank

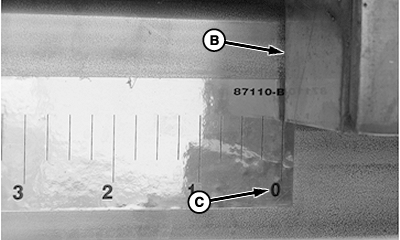

B - Indicator

C - Gauge “0”

Run spinners all the way to rear of adjustment using crank (A).

Indicator (B) should line up with “0” on gauge (C).

CS12167,00002B7-19-20130102
