Align Spinner Frame

IMPORTANT: Check at the beginning of each season.

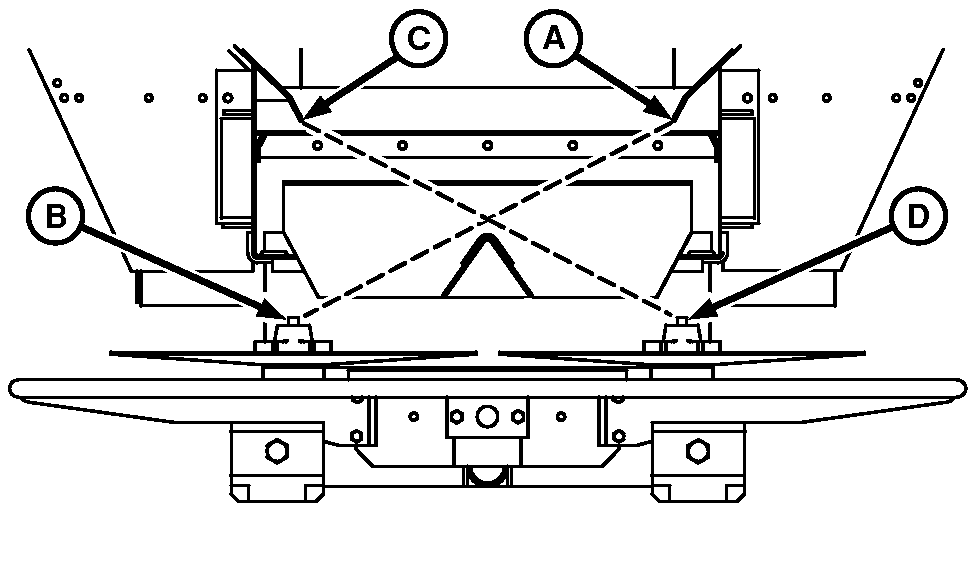

N97387
N97387-UN-18MAY12

A - Right Shield Mounting Edge

B - Left Spinner Disc Mounting Cap Screw

C - Left Shield Mounting Edge

D - Right Spinner Disc Mounting Cap Screw

Diagonally measure point (A) to (B) and point (C) to (D).

These measurements are to be equal. If not, loosen the four mounting bolts in the sill and maneuver the frame so these measurements are equal.
