Verify Second Product Bin Hillside Divider Location

Center hillside divider for equal delivery of product to both sides of the material divider.

N103534
N103534-UN-26APR13

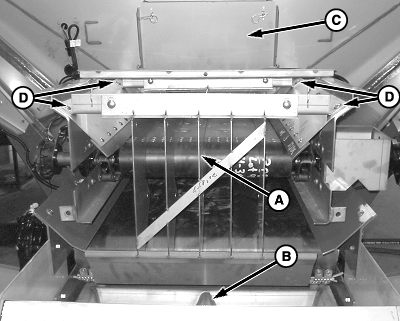

A - Middle Divider

B - Material Divider

C - Feedgate

D - Hardware

Adjust hillside divider so that the middle divider (A) is centered with material divider (B) and feedgate (C). Loosen hardware (D) and adjust if necessary.
