Hydrostatic/Hydraulic Drive Oil

IMPORTANT: The lubricant distributor and/or supplier is to be held responsible for results obtained from their products. Procure lubricants from distributors and/or supplier of unquestioned integrity, supplying known and tested products. Do not jeopardize your equipment with inferior lubricants. Use only products qualified under the following oil viscosity specifications and classification recommended by reputable oil companies.

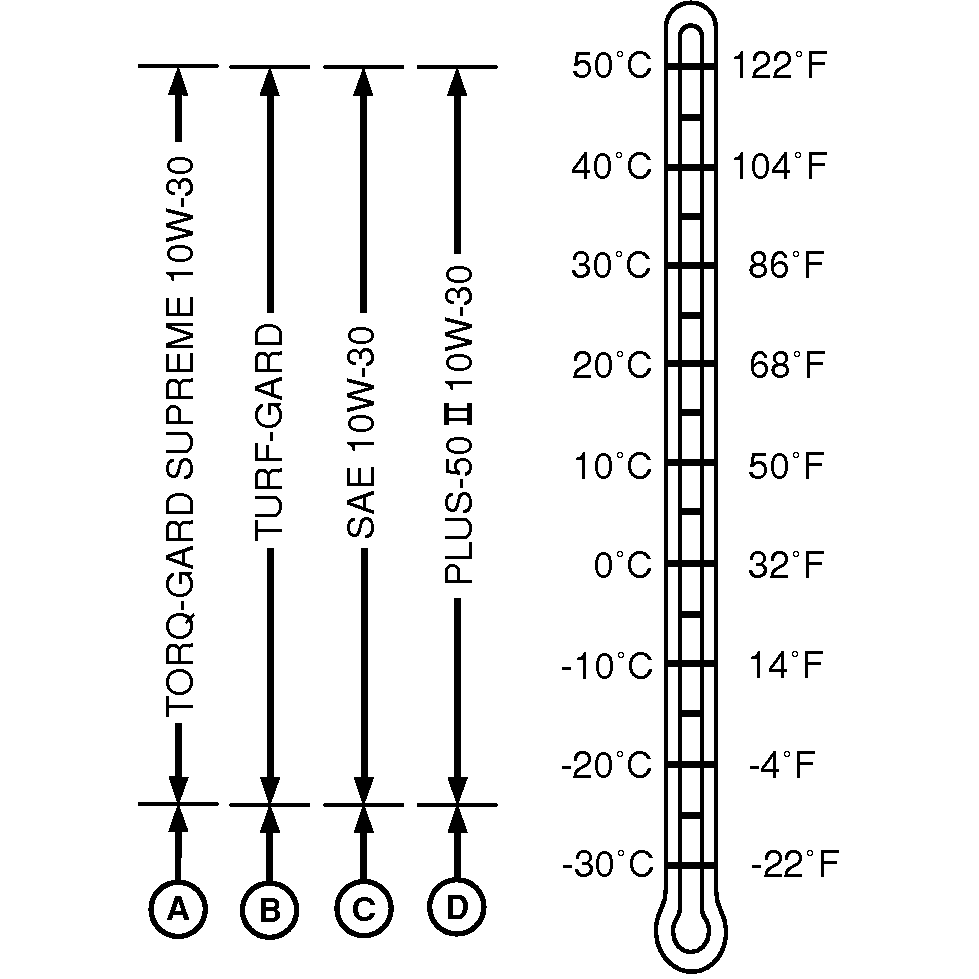

N102625
N102625-UN-28FEB13

A - TORQ-GARD SUPREME 10W-30

B - TURF-GARD

C - SAE 10W-30

D - Plus-50 II 10W-30


Use oil viscosity based on the expected air temperature range during the period between oil changes.

The following oils are preferred:

  • TURF-GARD™
  • TORQ-GARD SUPREME™ 10W-30
  • Plus-50™ II 10W-30 with API of CI-4 or higher

Also acceptable:

SAE 10W-30 with API of CI-4 or higher


TURF-GARD is a trademark of Deere & Company

TORQ-GARD SUPREME is a trademark of Deere & Company

Plus-50 is a trademark of Deere & Company

CS12167,000035F-19-20130425
