Spinner Calibration

1. CAUTION: Spinners will reach maximum speed! Calibrate in an open, safe area.

   NOTE: Must be performed at normal operating temperature 140° F (60° C).

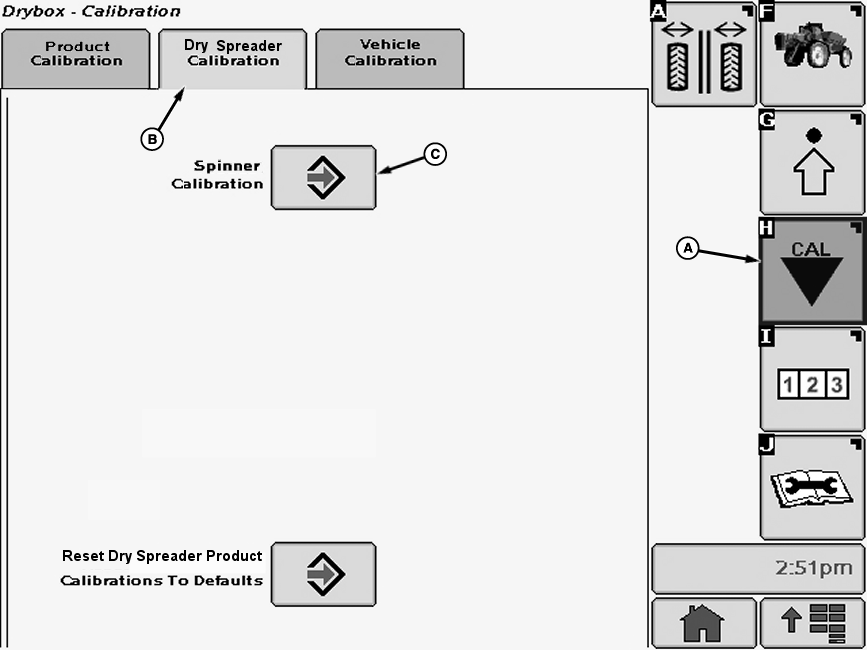

   N84195-UN-14APR09

   A - Calibration Softkey

   B - Dry Spreader Calibration Tab

   C - Enter Button

   Park machine in an open, safe area.

---




2. Select the Calibration softkey (A).

3. Select the Dry Spreader Calibration tab (B).

4. Select the Enter Button (C) next to Spinner Calibration to go to the calibration procedure.

5. NOTE: Solution PUMP ENGAGE switch is used as SPINNER ENABLE switch when dry spreader is installed. MASTER ON switch on multifunction control handle is used for CONVEYOR BELT START switch.

   If the spinners are running prior to entering calibration mode, the operator will be notified to wait until spinners stop to start calibration.

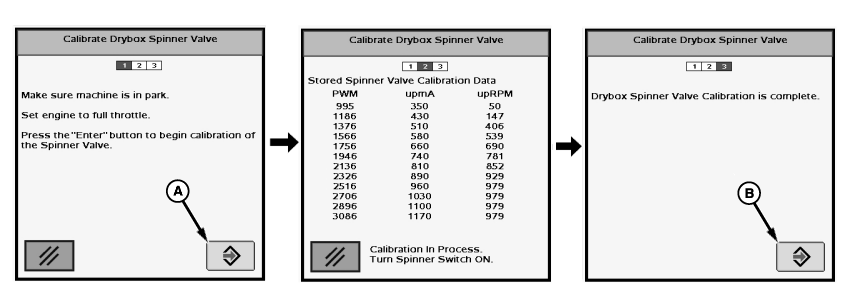

   N78776-UN-08NOV07

   A - Enter Button

   B - Enter Button

   Follow instructions on first screen. When finished select the Enter button (A) to start the calibration procedure. Turn on the spinners to begin calibration procedure by enabling the pump engage switch. Old calibration numbers will be displayed. Calibration may take several minutes. New calibration numbers will replace old numbers.

---




6. Shut off spinner when advised to do so.

7. “Drybox Spinner Valve Calibration is complete” will be displayed. Press Enter button (B) to return to Drybox Calibration tab.
