Install StarFire™ Receiver Bracket (EU Exports Only)

1.

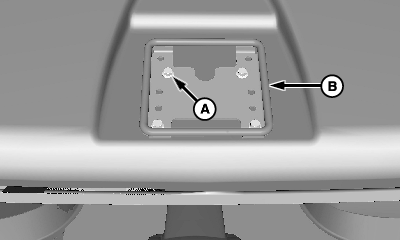

   N101307-UN-18DEC12

   A - Cap Screw, (4 Used)

   B - StarFire Receiver Mounting Bracket

   Remove and retain screws (A) from StarFire Receiver bracket.

---




2. Remove and retain StarFire Receiver mounting bracket (B).

3.

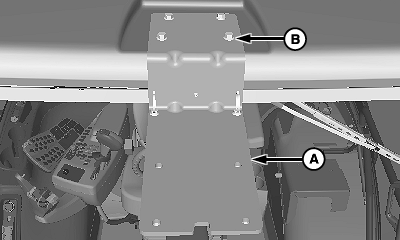

   N101308-UN-18DEC12

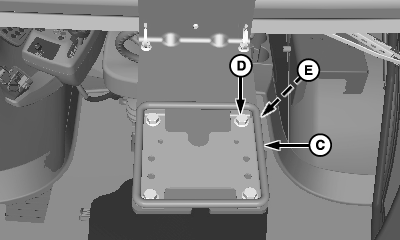

   N101309-UN-18DEC12

   A - EU Cab Mount Bracket

   B - Cap Screw, (4 Used)

   C - GPS Mounting Bracket

   D - Cap Screw,(4 Used)

   E - Nuts, (4 Used)

   Install EU cab mount bracket (A) using previously removed cap screws (B).

---




4. Install previously removed StarFire Receiver mounting bracket (C) using supplied cap screws (D) and nuts (E).
