Install Speed Limit Decal

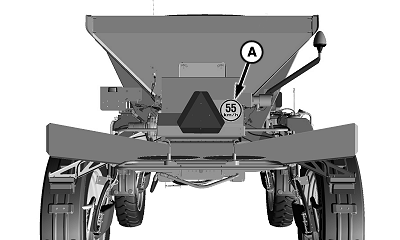

N103731-UN-10MAY13

A - Speed Limit Decal

• If your location is listed in the table provided then the speed limit decal must be replaced with correct decal.
• If your location is not shown and the dry spreader is installed on the R4030, a 50 km/h decal must be installed. Decal is located in machine shipping crates along with Operator’s Manual packet.
• If your location is not shown and the dry spreader is installed on the R4038 or the R4045, the correct decal is already installed.

Consult with local authorities to ensure the correct decal is installed.

Country	R4030	R4038	R4045
Belarus	40 km/h	40 km/h	40 km/h
Czech Republic	40 km/h	40 km/h	40 km/h
Hungary	40 km/h	40 km/h	40 km/h
Kazakhstan	40 km/h	40 km/h	40 km/h
Romania	40 km/h	40 km/h	40 km/h
Russia	20 km/h	20 km/h	20 km/h
Ukraine	40 km/h	40 km/h	40 km/h

If correct decal is not installed on machine use the following procedure to install correct decal.

IMPORTANT: Ensure decal adhesion. Before applying decals, clean all dirt, grease, oil, and moisture from application area. Surface temperature should be greater than 15° C (60° F) for best adhesion.

1. Use image and table in this section to correctly identify and locate decal placement.
2. Remove paper backing from decal.
3. Press one edge of decal on application area.
4. Smooth out air pockets while slowly pressing across decal to opposite edge. Verify complete decal adhesion.
