Lubricate Snubber and Drive Shaft Bearings—Weekly

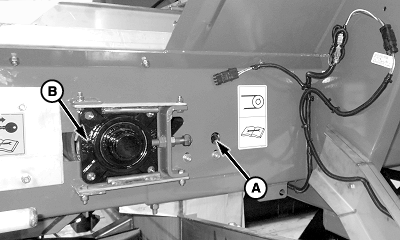

N108297-UN-05NOV13

Right-Hand Side Shown

A - Snubber Shaft Grease Fitting

B - Drive Shaft Grease Fitting

Lubricate snubber and drive shaft bearings using John Deere SD Poly Urea grease. Use three pumps of grease at fittings (A) and (B).

Repeat on left-hand side.
